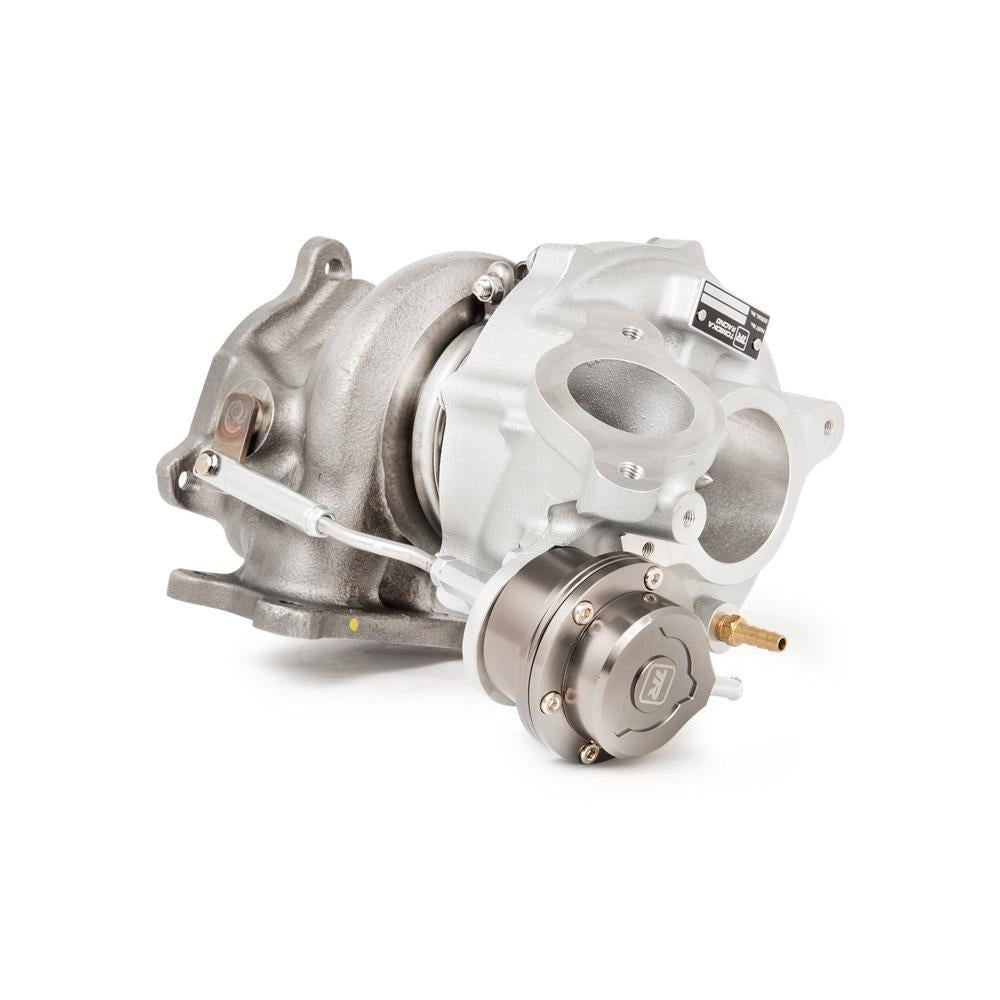

Tomioka TR Gen II GTX29 Bolt-On Turbo - 600HP | 2015-2019 Subaru WRX (TR-TS1052)

2015-2019 Subaru WRX TR Gen II GTX29 Turbocharger by Tomioka Racing

The next generation GTX29 turbo for the Subaru FA20DIT engine features 8% larger turbine wheel compared to previous version. In addition, the turbo also features a brand new dual ceramic ball bearing design from its previous generation.

POn the compressor side, the billet wheel is point-milled to improve airflow and reducing turbulence with the bullet locking nut. This turbo is perfect for users who look for quick spool turbo, gain in overall power band and top-end power for the Subaru FA20DIT turbo. All necessary fittings and gaskets are included in the box to make the installation process painless.

Features

• Angular Contact Dual Ceramic Ball Bearing
• Point-Milled Compressor Wheel
• Larger Turbine Wheel
• 100% Bolt-On
• Bullet Locking Nut

Benefits

• Improves Airflow & Reduces Turbulence
• Quick Turbo Spool
• Gains  in Overall Power Band & Top-End Power

Applications

• 2015 - 2019 Subaru WRX

Specifications

• Bearing: Dual Ceramic Ball-Bearing
• Flange Type: Subaru 5-Bolt
• Compressor Wheel: 72 mm
• Turbine Wheel: 61mm
• Turbine Housing: 10cm2
• Actuator: 1.03 bar / 15 psi
• Horsepower: 600 HP

What's In The Box?

• 1 - TR Gen II GTX29 Turbo
• Gaskets and Hardware

Warranty

• Manufacturer Standard Warranty
