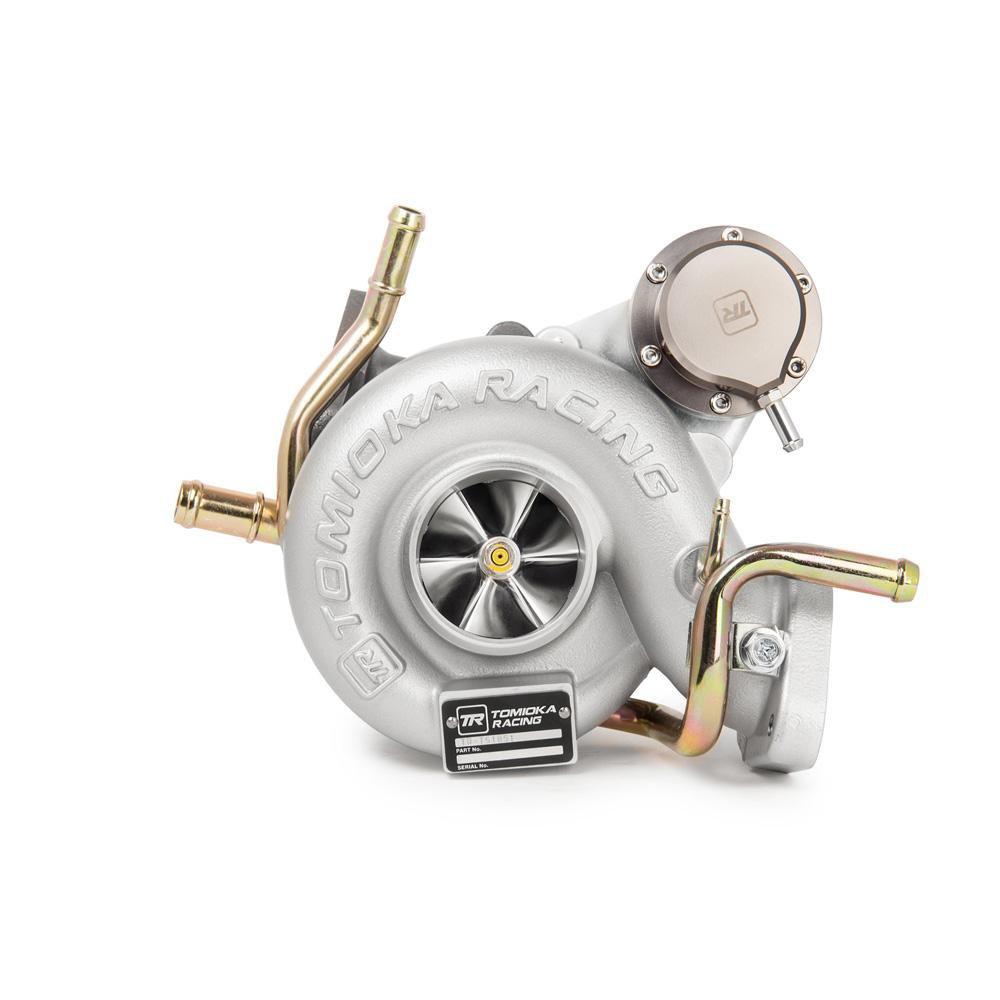

Tomioka TD05-20G Ball Bearing Billet Wheel 480HP Turbo | 02-07 Subaru WRX / 04-21 STI

02-07 WRX / 04-21 STI TD05-20G Ball Bearing Billet Wheel Turbo by Tomioka Racing

Slow spool no more! Tomioka Racing’s TD05-20G for Subaru now comes in a ball bearing version. This latest offering breaks the myth of slow spooling TD05-20G.

Armed with dual ceramic ball bearings and billet compressor wheel, this TD05-20G will spool close to a factory turbo with the right tune. The configuration provides balanced & improved air flow to the TD05 frame.

The faster spooling TD05-20G will inject more driving excitement to your daily Subaru. You can expect the same seamless fitment from this new turbo as its TD05-20G predecessor.

Features

• Dual Ceramic Ball Bearing

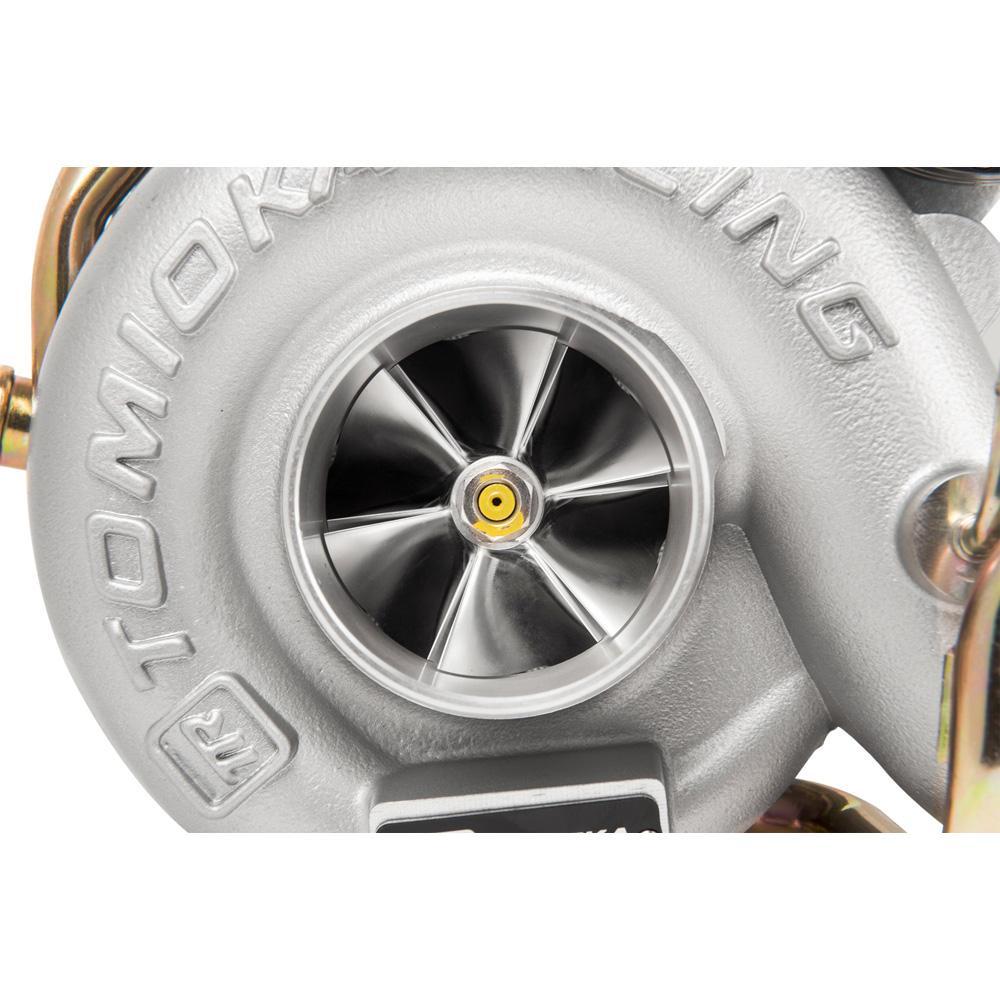

• Billet Compressor Wheel
• Fast Spool Time
• Bolt-On Fitment
• Gaskets & Hardware Included

Applications

• 2002 - 2007 Subaru WRX
• 2004 - 2021 Subaru STI

Specifications

• Bearing Type: Ball Bearing
• Flange: Standard Subaru 5-Bolt
• Compressor Wheel In: 52.5mm
• Compressor Wheel Ex: 68mm

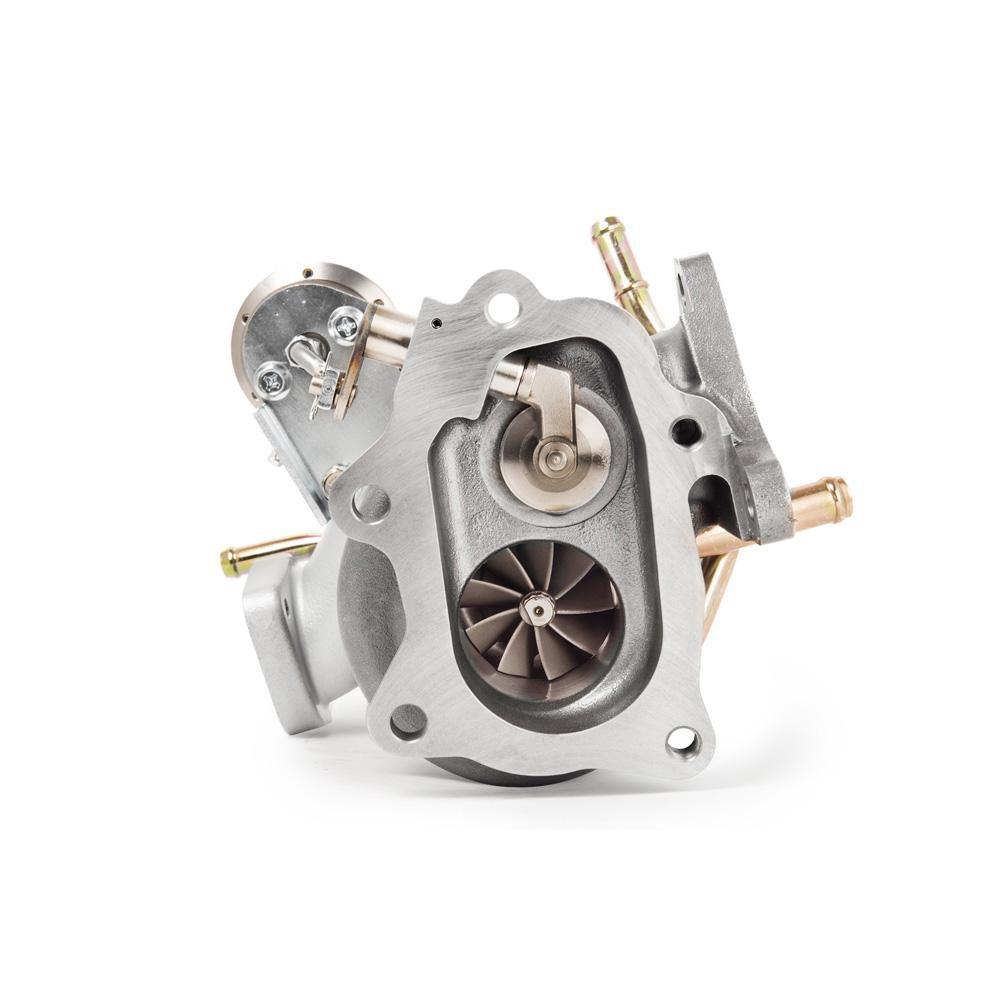

• Turbine Wheel In: 56mm
• Turbine Wheel Ex: 49.2mm
• Actuator: 1.1 BAR / 19 psi
• Turbine Housing: 8 cm2
• Max Power Rating: 480 HP

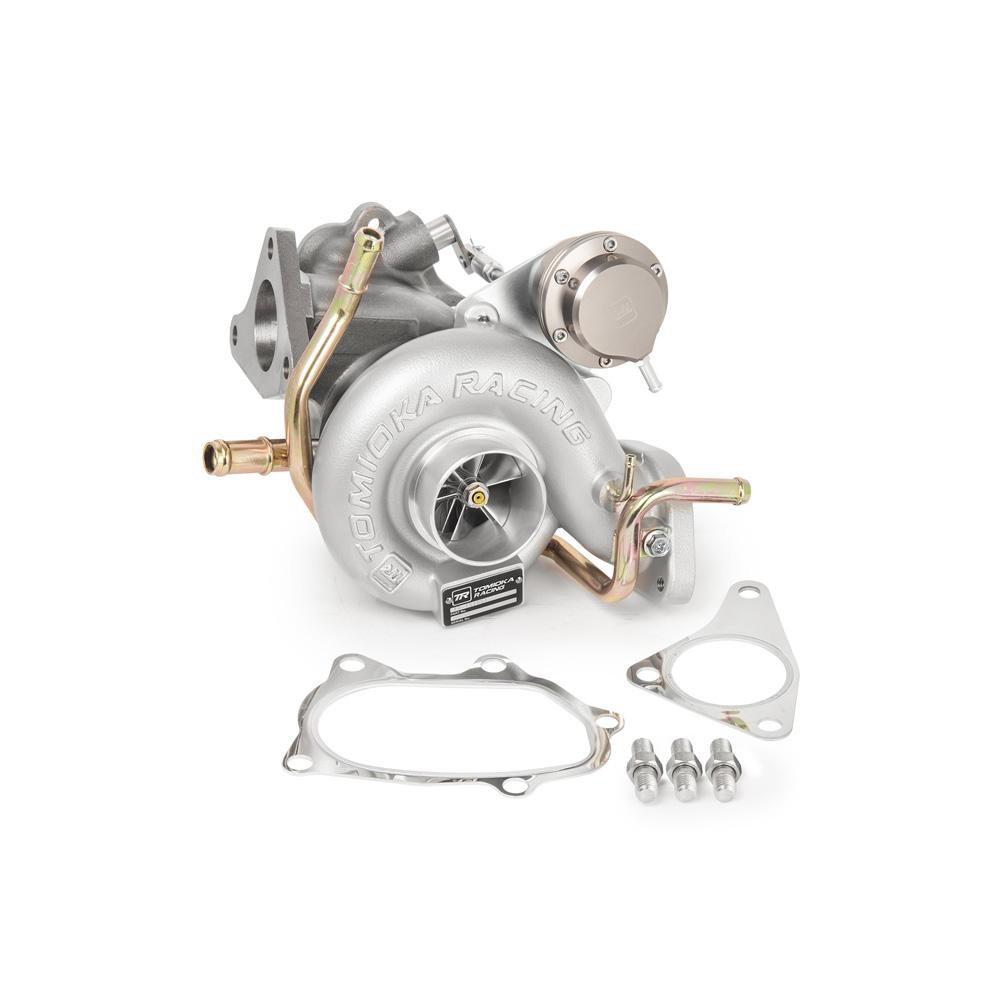

What's In The Box?

• 1 - TD05-20G Turbocharger
• Gaskets and Hardware

Warranty

• Manufacturer Standard Warranty
