Tomei Expreme Ti Titanium Evo 7-9 Catback Exhaust
Tomei Expreme Ti Titanium Evo 7-9 Catback Exhaust
Regular price
$1,090.00 USD
Regular price
Sale price
$1,090.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
STOCK COMPARISION

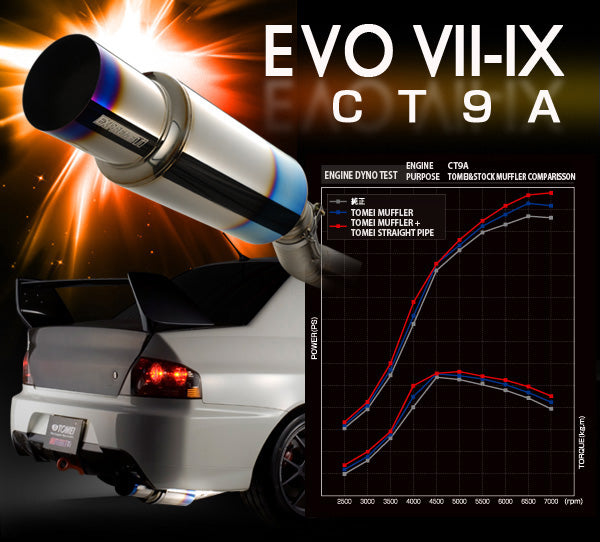

The exhaust flow design was the main focus in the pipe design, the best pipe thickness for weight and strength with pipe diameter to suit torque and all power gains throughout the entire power band.
TOMEI
STD
MATERIAL
TITANIUM
STAINLESS
DIAMETER MAIN PIPE
Φ80
Φ60.5
MAIN PIPE THICKNESS
1mm
1.5ｍｍ
SILENCER DIAMETER
Φ152
100×440mm (Oval)
SILENCER BROAD THICKNESS
1mm
N/A
TIP DIAMETER
Φ115
Φ100
TIP BROAD THICKNESS
1mm
N/A
FLANGE THICKNESS
6mm
12mm
WEIGHT
4.85kg
16.00kg
11.15 kg LIGHTER!
▲STANDARD EVO IX
RACING LAYOUT
For the best exhaust efficiency results minimal bends and curves was the design focus points on this product which aided with the supreme results.
3 PIECE ASSEMBLY
No flanges were fitted for increased weight savings and for a better finish with the race look secure springs and clamp methods.
DRY RACE SOUND
The instinctive sound of a true race exhaust sound that a Titanium material exhaust gives will intoxicate you with the dry race exhaust sound.
PERFORMANCE VALUE
The best performance is made possible with the best materials and still with keeping it within everyone’s reach.
KIT CONTENTS
MAIN PIPE A
MAIN PIPE B
SILENCER ASSEMBLY
GASKET
WASHER M12 x2
NUT M12 x2
A/F BOSS PLUG *1
COPPER WASHER *1
CLAMP BAND x2
SPRING x4
SILENCER BAND
SILENCER BAND INSULATOR
BOLT M8 L=25mm
NUT M8
SOUND REDUCER ver.2
MUFFLER HANGERS *2
SPACER *2
SPRING WASHER *2
BOLT M8 L=60mm *2
BOLT SMOOTH PASTE
1* Exculding North American models.
2* Excluding EVO IX Japanese models.
This model does not include North America.
COMPATIBLE WITH ALL CT9A EVO MODELS
JAPANESE BUMPER EVO VII VIII
JAPANESE BUMPER EVO IX
NORTH AMERICAN BUMPER EVO VIII / IX
EVO VII / VIII / IX - for JAPANESE BUMPER -
PART NUMBER ：
TB6090-MT01A (Previous P/N 440003)
MSRP $1,090.00 (USD)
EVO VIII / IX - for NORTH AMERICAN BUMPER-
TB6090-MT01B (Previous P/N 440004)
MSRP $1,090.00 (USD)
Additional bolt holes may be required when using the sound reducer ver.2 .
