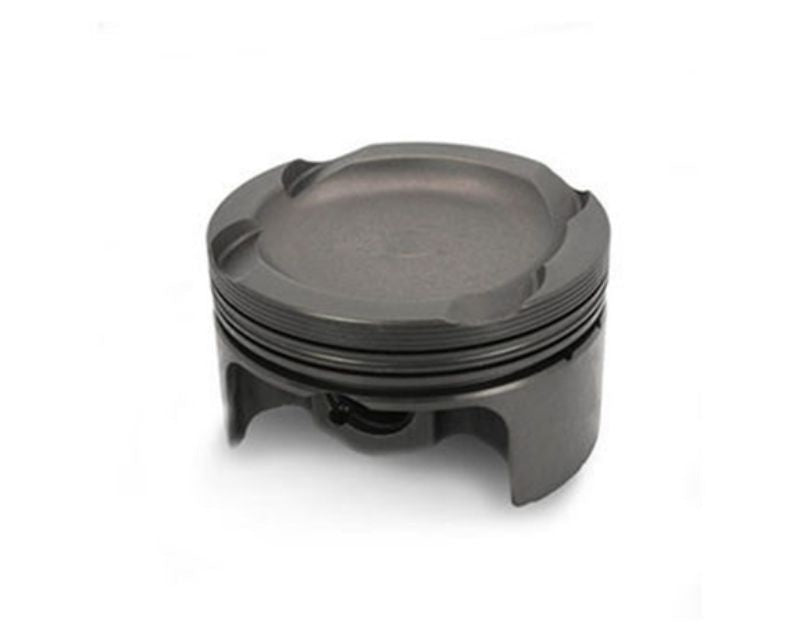

Supertech Pistons 87.5mm Bore -7cc Dome Ford Ecoboost 2.0T 2010-2018
Supertech Pistons 87.5mm Bore -7cc Dome Ford Ecoboost 2.0T 2010-2018
Supertech Pistons are manufactured from extruded high silicone, enhanced 4032 alloy (with additional Cu, Ni & Mg) that had low thermal expansion, excellent wear resistance and higher thermal conductivity. Supertech Pistons, with this alloy, have withstood up to 42psi of boost, with alcohol, without any problems.
A two or three step forging process yields a fine structural grain which are then submitted to several machining steps in state of the art CNC machines. Several heat treatments provide the piston with high tensile strength and evenly distributed hardness.
Contact reduction grooves are standard, and pin bores are honed and reamed for precise fit. Wrist pins are constructed of cold extruded chrome moly steel for high strength and used with wire clip locks.
Finally, the pistons receive a 'phosphate dry lubricant' coating to protect the rings against 'micro-welding' and enhance lubrication on the skirt/cylinder area.
Specifications:
- Bore: 87.5mm
- Comp Height: 32.75mm
- Dome/Dish: -7cc
- Comp Ratio: 9.3:1
- Set of 4
- Ford Edge 2011-2015
- Ford Escape 2013-2016
- Ford Everest 2015
- Ford Explorer 2011-2015
- Ford Falcon 2012-2016
- Ford Focus ST 2012-2018
- Ford Fusion 2013-2017
- Ford Galaxy 2010
- Ford Mondeo 2010
- Ford S-Max 2011
- Ford Taurus 2013-2017
- Ford Tourneo 2016
