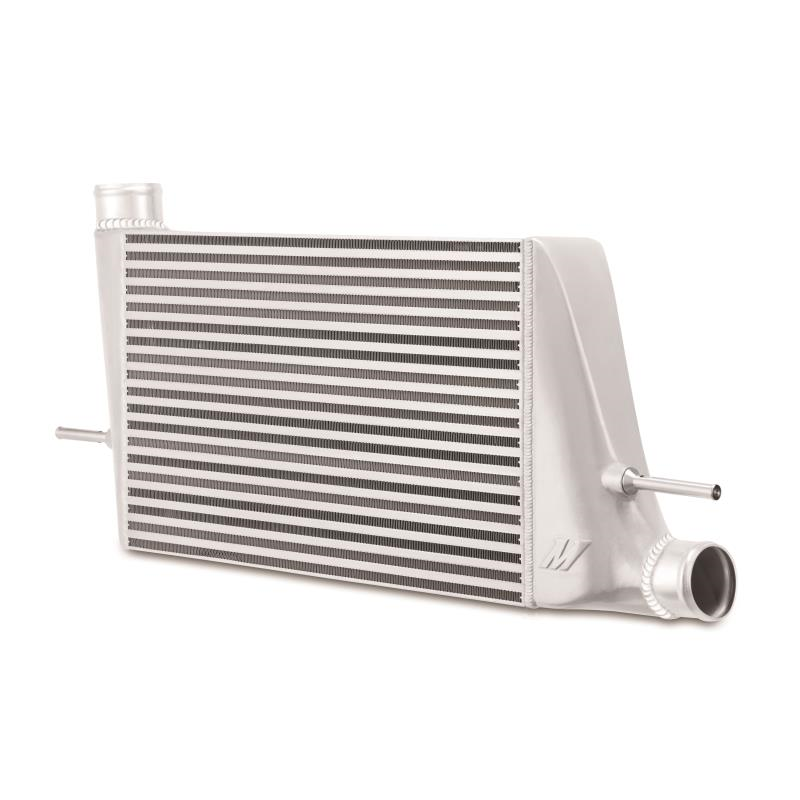

Mishimoto Front Mount Intercooler Silver | 2008-2015 Mitsubishi Lancer Evolution X (MMINT-EVO-10X)

Front Mount Intercooler Silver by Mishimoto

A high-horsepower Evo demands an intercooler that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high-boost pressures often suffer from increased air intake temperatures (AITs) and heat soak, which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler. This intercooler is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3.5" thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminum end tanks provide superior durability and smooth, uninterrupted airflow. The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler provides a dyno-proven increase of 10 whp and 10 tq, and it will support modified vehicles up to 600 whp! This Evo intercooler core is equipped with a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler will provide the cooling that your engine needs to perform at its best. This Evo intercooler is available with a powder-coated finish in Sleek Silver. As with all our products, this intercooler includes the Mishimoto Lifetime Warranty

Features

• Direct fit for the 2008+ Mitsubishi Lancer Evolution X
• 10 whp and 10 tq bolt-on power increase
• Efficient 3.5" thick bar-and-plate core provides optimal heat dissipation and low AITs
• Full aluminum cast end tanks provide increased durability and smooth, uninterrupted airflow
• Strategically designed fins for minimal pressure loss
• Substantial core volume will support vehicles up to 600 whp
• Available with a powder-coated finish in Sleek Silver
• Mishimoto Lifetime Warranty
• CARB EO #: D-759

Specifications

• Chassis Codes: CZ4A
• Weight: 23 lbs
• Tank Wall Thickness: 3.5mm
• Outlet: 2.5"
• Core Length: 19.5"
• Core Height: 12"
• Core Width: 3.5"
• Inlet: 2.375"
• Core Size: 19.5" x 12" x 3.5"
• Overall Width: 4.5"
• Overall Height: 13.7"
• Overall Length: 28.3"
• Construction: Bar-and-Plate
• Make: Mitsubishi
• Engine Codes: 4B11T
• Fin Pitch
  • External: 6.35 fins per inch
  • Internal: 7.5 fins per inch

Applications

• 2008-2015 Mitsubishi Lancer Evolution X

What's In The Box?

• Mishimoto Intercooler
• CNC Mounting Pegs
• Mishimoto Lifetime Warranty

Manual Instructions

• Click Here for Manual Instructions
