Mishimoto Baffled Oil Catch Can System | 2016+ Chevrolet Camaro 2.0T (MMBCC-CAM4-16S)

Baffled Oil Catch Can System for 2016+ Camaro 2.0T by Mishimoto

Get both the PCV and CCV Baffled Oil Catch Can Kits combined in one! This is the ultimate method for protecting your LTG engine from the dangers of oil blow-by. With this complete Mishimoto 2016+ Camaro 2.0T Catch Can System, you will have an unbeatable setup that will effectively combat oil blow-by, keeping your intake, charge pipes and turbocharger compressor free of oil.

To help maintain proper octane levels, prevent blow-by and reduce potential detonation, we use a patent-pending solution engineered to extract blow-by using the hidden PCV valve inside the valve cover. This complete kit uses two 50-micron bronze filter-equipped catch cans in line with both the PCV and CCV systems, and includes application-specific mounts and silicone hoses available in black, blue or red. The dual billet 6061 aluminum catch cans mount securely under your hood as if they came that way from the factory, and they both install in under an hour! The cans mount side-by-side for maximum style and protection.

The Mishimoto 2016+ Camaro 2.0T Catch Can System includes all mounting and installation hardware, and ships with the Mishimoto Lifetime Warranty.

Features

• Direct fit for the 2016+ Chevrolet Camaro 2.0T
• Installs in under 1 hour
• Patent Pending PCV adapter allows for proper connection into engine’s PCV system
• Cans mount in line with the PCV system and CCV system to separate oil from air using 50 micron bronze filters
• Helps maintain proper octane levels to reduce potential detonation
• Reduces carbon build-up on the intake valves

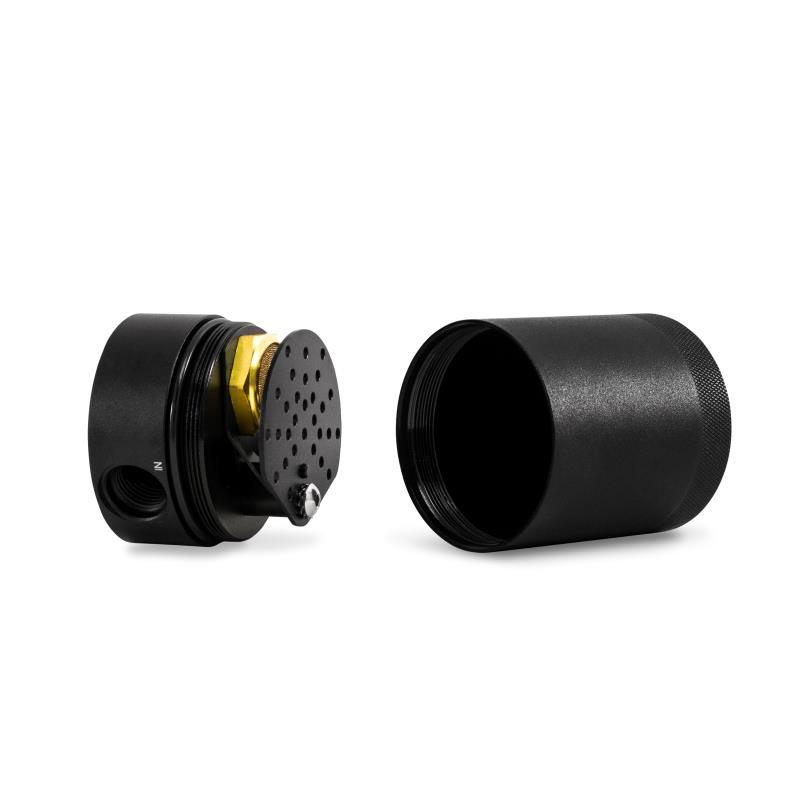

• Internal air diverter increases air turbulence to improve oil separation

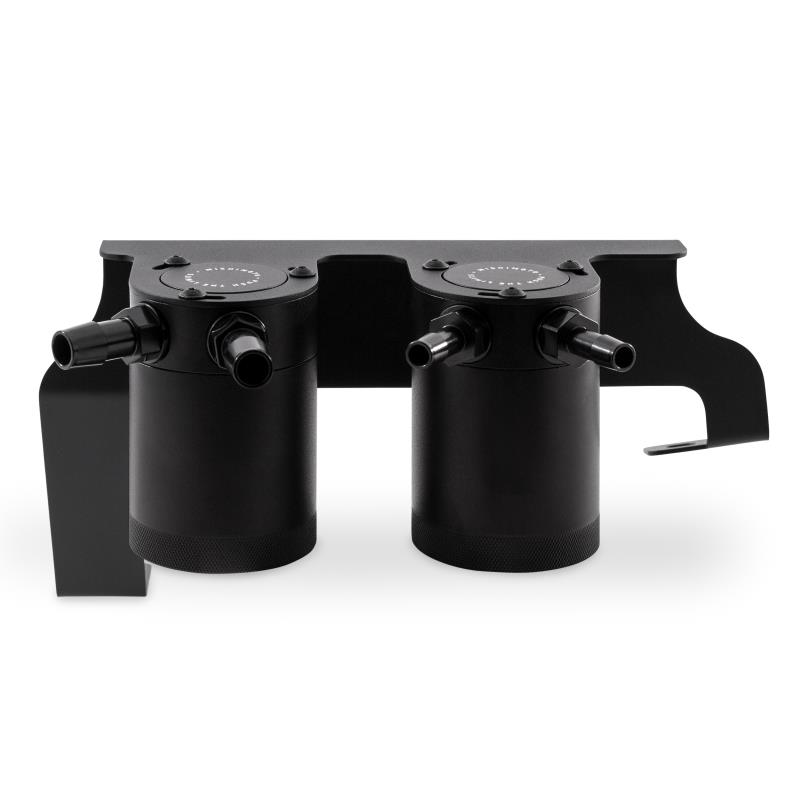

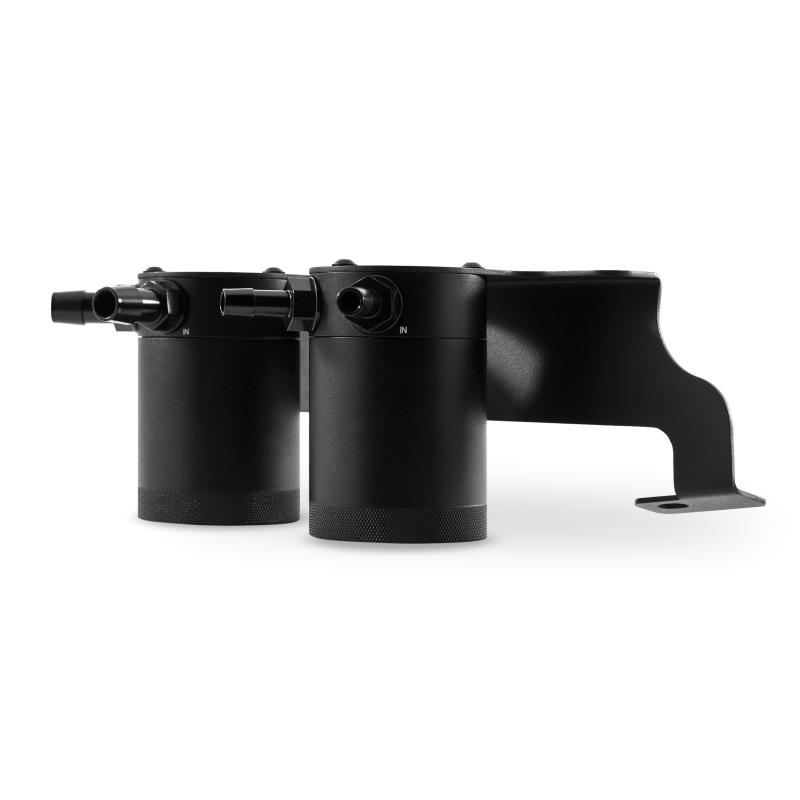

• Application-specific brackets mount the cans in a serviceable location near the main fuse box
• Billet 6061 aluminum sealed cans
• Filters and cans are fully serviceable
• Catch cans have a 2 oz. capacity for longer servicing intervals

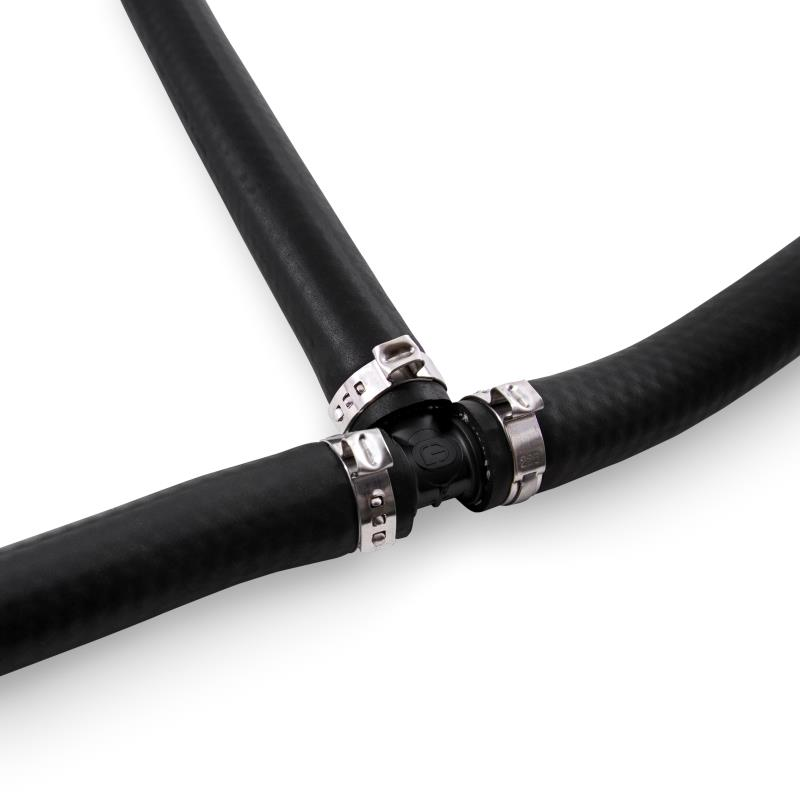

• Application-specific black silicone hoses
• Hoses include OEM style quick-disconnect fittings for easy installation and special tools to remove original fittings without damage
• Mishimoto Lifetime Warranty

Please Note: After installation, Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.

Applications

• 2016+ Chevrolet Camaro LS/LT 2.0T

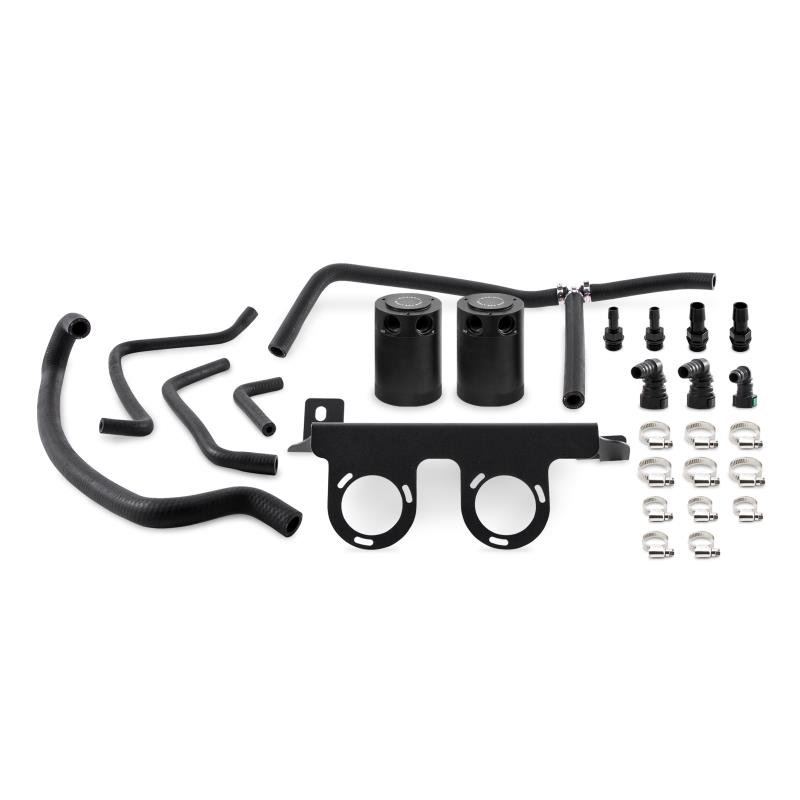

What's In The Box?

• 2 - Application-specific mounting bracket
• 2 - Black, Anodized 6061 Aluminum Catch Can
• 5 - Direct-fit Silicone Hoses
• 11 - High-quality worm gear clamps
• 2 - Metal Tool for removing stock fittings
• 4 - Plastic Barbed Fittings
• 1 - Plastic Barbed Straight Fitting
• 1 - Patent Pending PCV adapter
• 2 - Air Diverter
• 2 - Internal Baffle & Rod
• 2 - 3/8" NPT Plug
• 2 - Large O-rings
• Mounting Hardware
• Mishimoto Lifetime Warranty

References

• Installation Instructions

Warranty

Mishimoto Lifetime Warranty
