Mishimoto Baffled Oil Catch Can - PCV | 2016+ Chevrolet Camaro SS (MMBCC-CAM8-16PBE)

2016+ Camaro SS PCV Oil Catch Can by Mishimoto

The 6.2 liter LT1 is an animal of an engine, but like any engine, does not enjoy oil in its intake. Enter Mishimoto’s Camaro SS baffled oil catch can! Designed to protect the LT1’s intake from becoming an oil slick, this catch can mounts in-line with the PCV system to separate oil and air using a 50 micron bronze filter.

The catch can is mounted away from most intake and supercharger kits to help leave room for future modifications. This new GM LT1 engine features direct fuel injection, which is great for creating an efficient burn, but allows for carbon build up on the intake valves. Engines with conventional port injection have fuel injected into the intake runners, which helps to wash carbon deposits off the valves. This isn’t the case with the Camaro’s LT1, making the addition of a catch can vital in preventing increased carbon buildup. Mishimoto’s 2016 Camaro SS catch can kit features Mishimoto’s 2-port Compact Baffled Oil Catch Can which features a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit silicone hoses and an application-specific bracket make for a quick and simple installation. To back up Mishimoto’s superior craftsmanship, each 2016 Camaro SS catch can kit comes with the renowned Mishimoto Lifetime Warranty

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

Features

• Direct fit for the 2016+ Chevrolet Camaro
• Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
• Installs in under 30 minutes

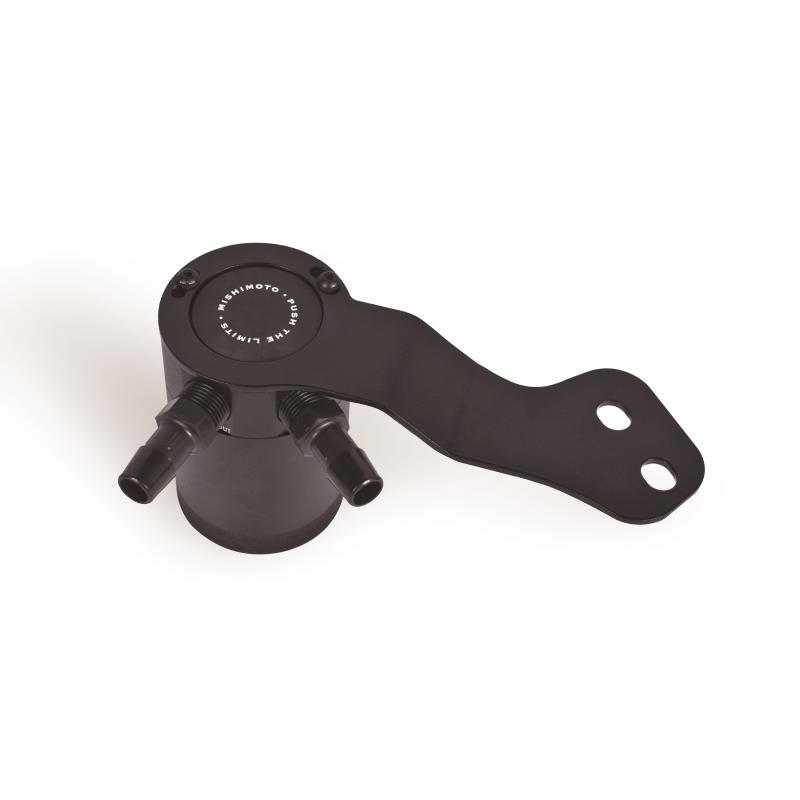

• Robust bracket mounts the can in a serviceable location away from most intake and supercharger kits
• Works in conjunction with the stock air /oil separator
• Catch can has a 2 oz. capacity for longer servicing intervals

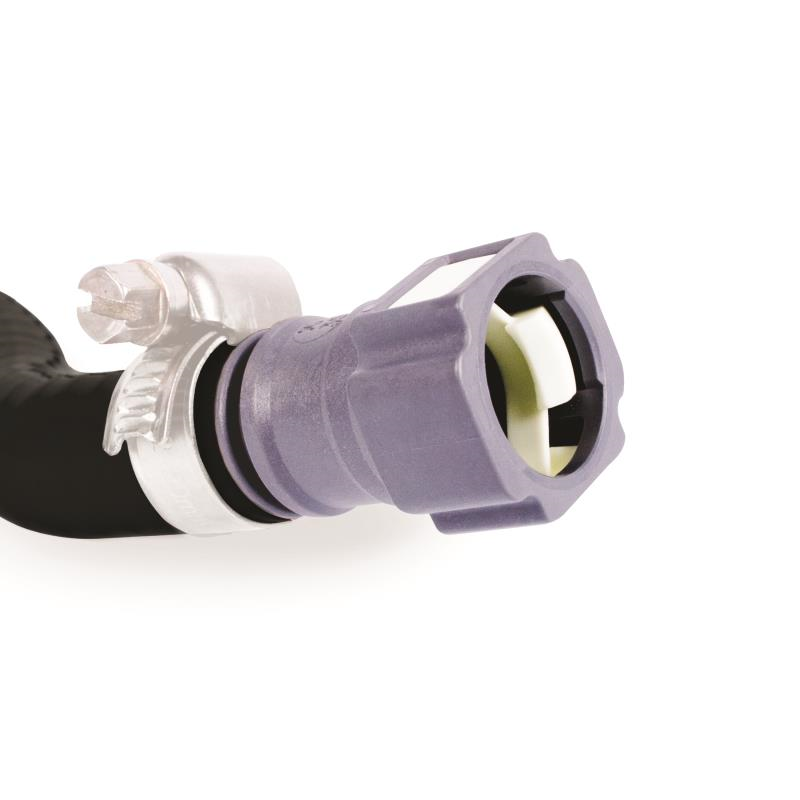

• Silicone hoses include pre-attached stock-style, quick-disconnect fittings for a true plug-and-play install

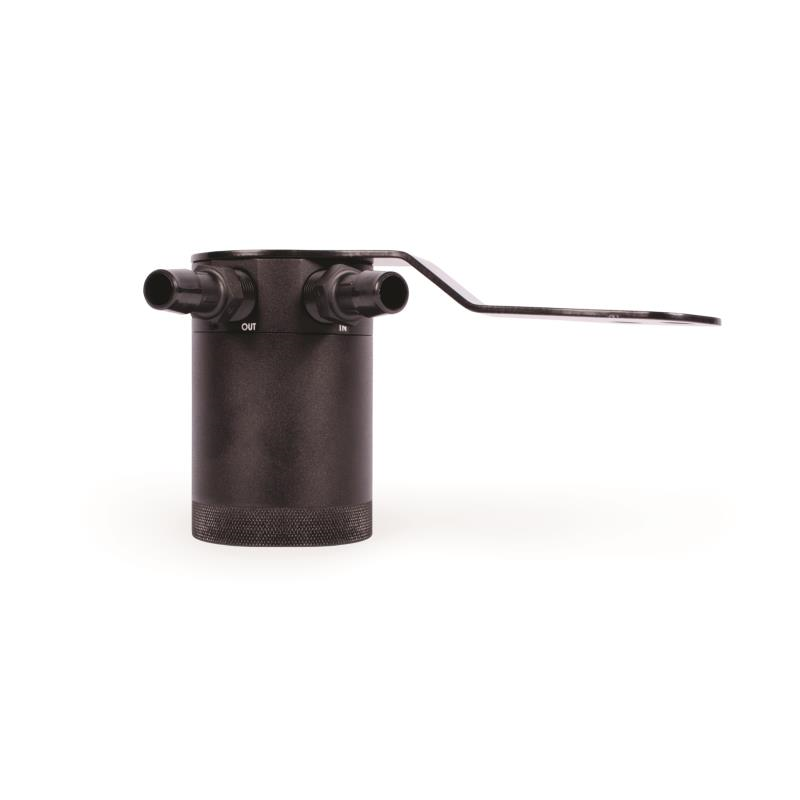

• Billet 6061 aluminum sealed can
• Defends intake system and essential components from oil blow-by
• Filter and can are fully serviceable
• Internal air diverter turbulates air longer to improve oil separation

Applications

• 2016+ Chevrolet Camaro SS LT1

Benefits

• Defends Engine from Blow-By
• Improves Oil Separation
• Helps Maintain Proper Octane Levels
• Increased Intake Performance

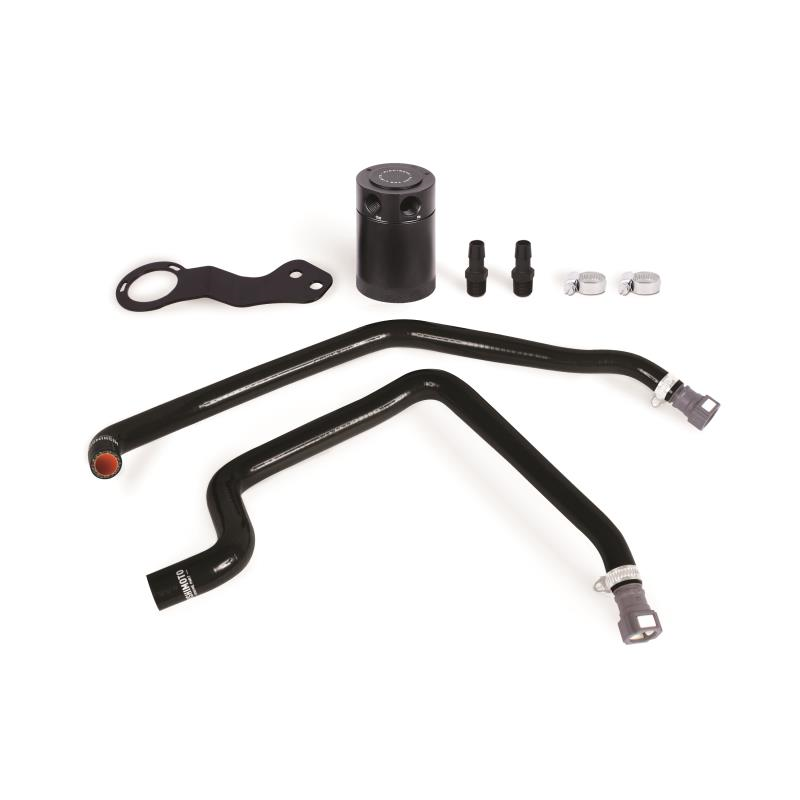

What's In The Box?

• 1 - Catch Can
• 1 - Mounting Bracket
• 2 - Silicone Hoses
• 2 - Worm-Gear Clamps
• Necessary Hardware
• Instructions/Manuals
• Warranty Information

References

• Installation Instructions

Warranty

• Mishimoto Signature Lifetime Warranty
