Brembo GT-R Big Brake Kit (Rear) - 345x28mm (14") 4-Piston Caliper 90-05 Acura NSX - GT-R-2P-.8055A

The Brembo GT-R braking systems are designed to meet the needs of aggressive braking whether on the road or the track. The GT-R is the most advanced expression of all Brembo's experience in braking system design.

The GT-R calipers are made from billet aluminum with radial 4 and 6 piston attachments. They reduce the non suspended weight, improving the dynamics and vehicle performance. They are designed to provide a constant locking strength and the sensation of a stable and reliable pedal. The pistons with stainless steel radiators allow a significant reduction of heat passage during extreme driving, reducing brake wear to a minimum. In order to guarantee protection against corrosion and to provide high quality in the field, the GT-R calipers are nickel plated and have the Brembo logo CNC machined in red embossing.

GT-R braking systems include two piece floating discs which reduce the suspended weight and dissipate heat quickly. The floating disc's anti-noise hardware is the direct result of Brembo's experience with brakes designed for Formula 1 competition.

In order to guarantee correct installation without problems, the GT-R kit includes all the necessary hardware elements such as billet brackets and installation adaptors as well as stainless steel Goodridge brake pipes.

Features:

• Brembo GT-R Systems
• Caliper Body: Billet Monobloc Radial Mount
• Caliper Color: Nickel Plated
• Number of Pistons: 4
• Disc Size and Construction: 345x28mm 2-Piece
• Disc Type: Type 3
• Disc Vane Design: Vented Curved 48 Vane
• Disc Material: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Disc to Hat Mounting: Floating D-Bobbin with Anti Rattle Spring
• Front or Rear System: Rear

Friction Material:

• Pad Compound: Brembo High Performance FM1000
• Pad Volume/Surface Area: 76.4 | 62.1

Included Hardware:

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

NOTE: Not for road use. This system eliminates the parking/emergency brake function if not used in conjunction with parking brake kit.

Part Number:

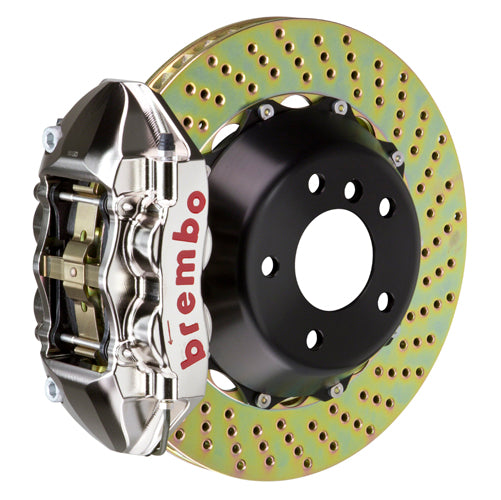

• Cross Drilled: 2P1.8055AR
• Slotted: 2P2.8055AR

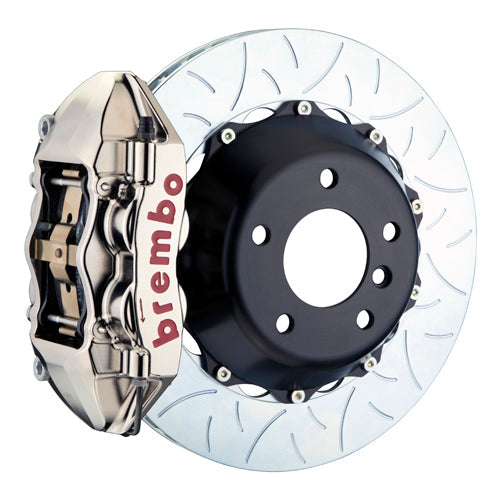

• Type 3: 2P3.8055AR

• 90-05 Acura NSX
