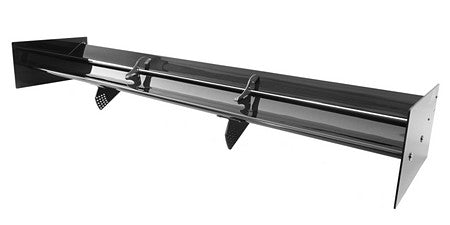

APR Performance GT-1000 Universal 78" Wing ( Pedestals and Mounts Not Included) - AS-407800

All GT Series wings feature an all-new, low-drag, aerodynamic 2D designed airfoil shape. The 2D design allows the wing to maintain a consistent level of downforce across its entire span. Computational Fluid Dynamics (CFD) analysis was performed on this wing to support validation of its aerodynamic design. Representing the latest in ground-breaking aerodynamic performance, the GT-1000 includes these special features: - 78 span, 10 chord (main foil), 4 chord (secondary foil) - Ultra-high downforce, up to 1650 pound force (lbf) of downforce (at 160 MPH) - Angle-of-Attack (AoA) adjustment from 10 to 52 degrees (relative to ground plane) on the secondary airfoil, with no stall at 52 degrees - Side plate dimensions of 17.1 (width) x 9.39 (height) - 6061 billet aluminum brackets

• Special Note: For custom-mount pedestal locations. Pedestal is NOT included.
• ***Chassis mounting is required***
• ***Customer must provide mounting distance***
