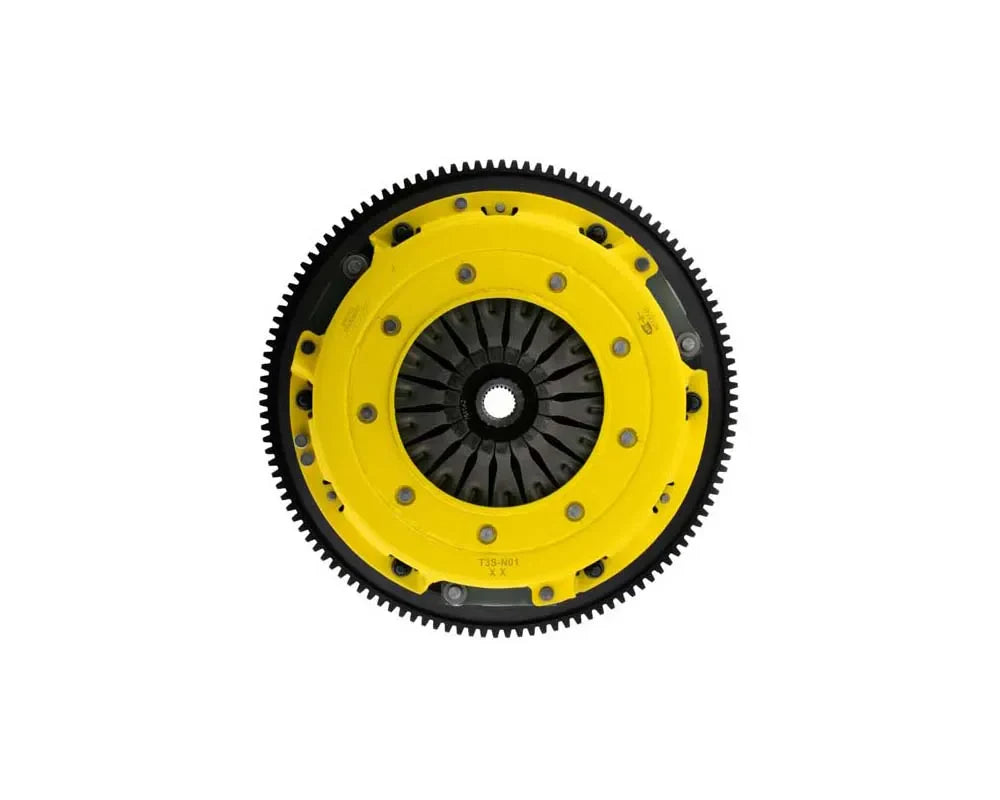

Advanced Clutch Twin Disc MaXX XT Street Kit | (T3S-N01)
Advanced Clutch Twin Disc MaXX XT Street Kit | (T3S-N01)
Couldn't load pickup availability
Advanced Clutch Twin Disc MaXX XT Street Kit T3S-N01 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may included a pilot bearing and release bearing.
Features:
- Heavy to very heavy pedal effort, smooth engagement, mild to moderate gear rattle
- Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
- Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
- Recommended for race use only
- 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications:
- Clutch Master Cylinder Included: No
- Grade Type: Performance
- Flywheel Included: Yes
- Pressure Plate Type: Maxx Xtreme
- Release Bearing Included: Yes
- Clutch Disc Diameter: 10.5 in
- Clutch Disc Diameter: 267 mm
- Disc Material: Organic
- Input Spline Quantity: 24
- Input Shaft Diameter: 1 in
- Alignment Tool Included: Yes
- Disc Type Sprung Solid: Solid
- Pressure Plate Bolts Included: No
- Clutch Slave Cylinder Included: No
- Flywheel Bolts Included: No
- Pilot Bearing Included: Yes
- Product Weight (lbs.): 45.9
- SFI: 1.2
- Torque Capacity (ft/lbs.): 1206
- Torque Capacity Over OE: 1.5
