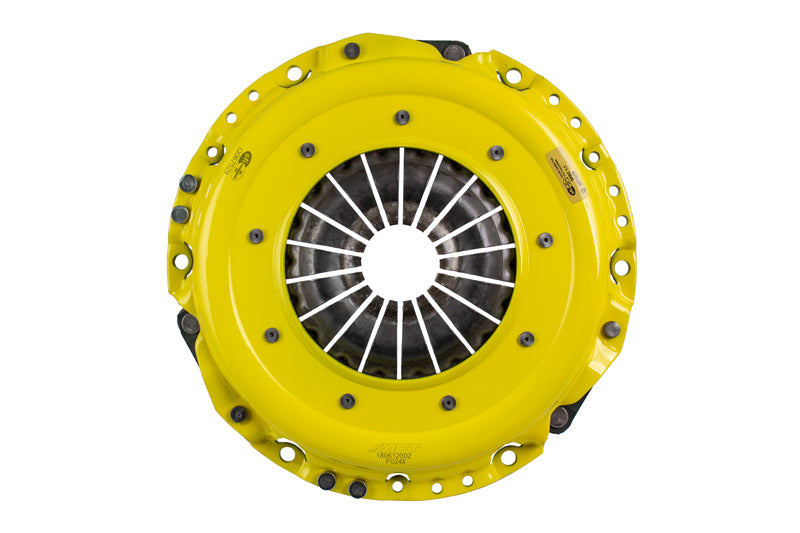

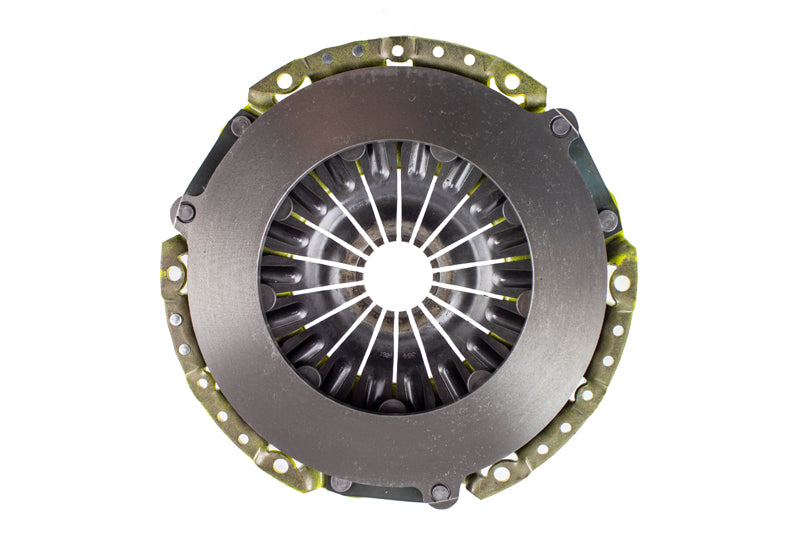

ACT Xtreme Pressure Plate

F024X is an ACT Xtreme pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385018399
• Counterweight Assist: No
• Diameter: 240
• Grade Type: Performance
• Part Fitment Requirement: Must be used with ACT disc (not included). Pressure Plate bolts included (M8-1.25 x 20mm).
• Product Weight (lbs.): 10.7
• SFI: 1.1
• Type: Xtreme

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 3 inches
• Weight: 12.7 lb
