ACT XT/Race Sprung 6 Pad Kit | Multiple Fitments (NX1-XTG6)

ACT XT/Race Sprung 6 Pad Kit

NX1-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic
• Input Spline Quantity: 24
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes
• Product Weight (lbs.): 14.9
• Torque Capacity (ft/lbs.): 475
• Torque Capacity Over OE: 1.68
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8

Applications

• 1980-1983 Nissan 720
• 1981-1984 Nissan Maxima
• 1975-1979 Nissan 620
• 1975-1978 Nissan 280Z
• 1989-1998 Nissan 240SX
• 1980-1986 Nissan 720
• 1990-1990 Nissan Axxess
• 1979-1983 Nissan 280ZX

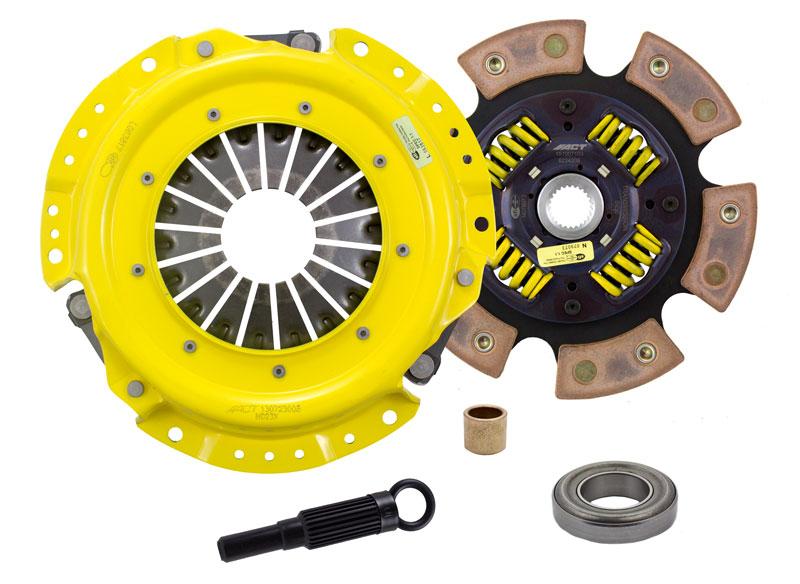

What's In The Box?

• Clutch Friction Disc (6224206)
• Clutch Alignment Tool (AT01)
• Clutch Pressure Plate (N023X)
• Clutch Pilot Bushing (PB1012)
• Clutch Release Bearing (RB016)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
