ACT XT/Race Sprung 6 Pad Kit | Multiple Fitments (MB3-XTG6)

ACT XT/Race Sprung 6 Pad Kit

MB3-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 11.6
• Torque Capacity (ft/lbs.): 420
• Torque Capacity Over OE: 1.49
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.4
• Clutch Disc Diameter (mm): 214
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter (in.): 0.875
• Alignment Tool Included: Yes

Applications

• 1989-1993 Mitsubishi Galant
• 1992-1994 Mitsubishi Expo LRV
• 1992-1996 Eagle Summit
• 1990-1994 Plymouth Laser
• 1993-1995 Hyundai Scoupe
• 1990-1994 Mitsubishi Eclipse
• 1992-1994 Hyundai Sonata
• 1993-1995 Hyundai Elantra
• 1992-1994 Plymouth Colt
• 1989-1994 Dodge Colt
• 1988-2002 Mitsubishi Mirage
• 1990-1994 Eagle Talon

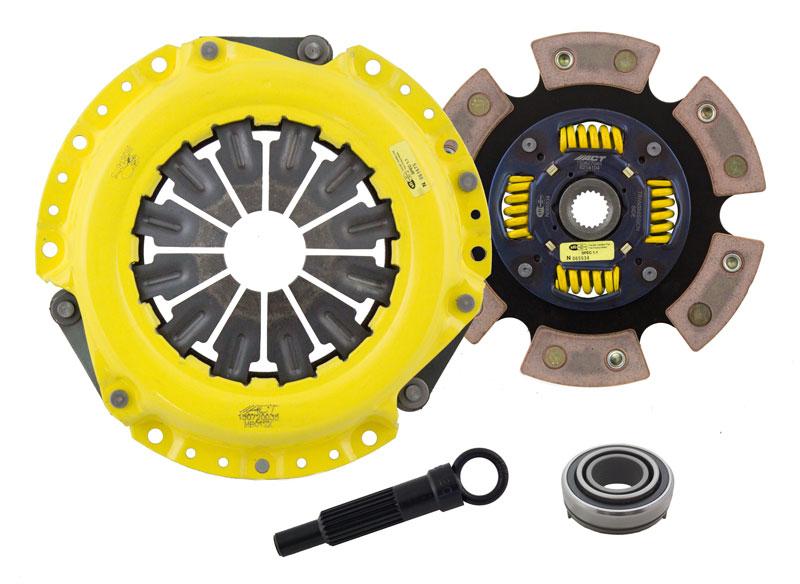

What's In The Box?

• Clutch Friction Disc (6214104)
• Clutch Alignment Tool (AT20)
• Clutch Pressure Plate (MB012X)
• Clutch Release Bearing (RB210)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
