ACT XT/Race Sprung 4 Pad Kit | Multiple Fitments (NX9-XTG4)

ACT XT/Race Sprung 4 Pad Kit

NX9-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

• Torque Capacity Over OE: 1.36
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.4
• Clutch Disc Diameter (mm): 214
• Disc Material: Ceramic
• Input Spline Quantity: 18
• Input Shaft Diameter (in.): 0.8125
• Alignment Tool Included: Yes
• Product Weight (lbs.): 10.8
• Torque Capacity (ft/lbs.): 410

Applications

• 1991-2006 Nissan Sentra
• 1991-1993 Nissan NX
• 1991-2002 Infiniti G20
• 1995-1998 Nissan 200SX

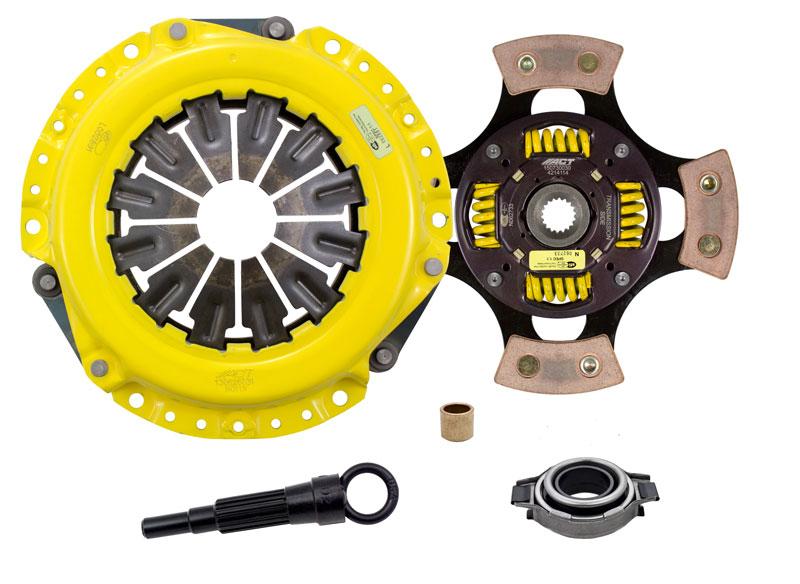

What's In The Box?

• Clutch Friction Disc (4214114)
• Clutch Alignment Tool (AT68)
• Clutch Pressure Plate (N011X)
• Clutch Pilot Bushing (PB1012)
• Clutch Release Bearing (RB433)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
