ACT XT/Race Rigid 6 Pad Kit | 2002-2005 Lexus IS300 (TS5-XTR6)

ACT XT/Race Rigid 6 Pad Kit

TS5-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Part Fitment Requirement: Must be used with OE dual-mass flywheel (not included).
• Product Weight (lbs.): 16
• Torque Capacity (ft/lbs.): 450
• Torque Capacity Over OE: 1.07
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 2002-2005 Lexus IS300

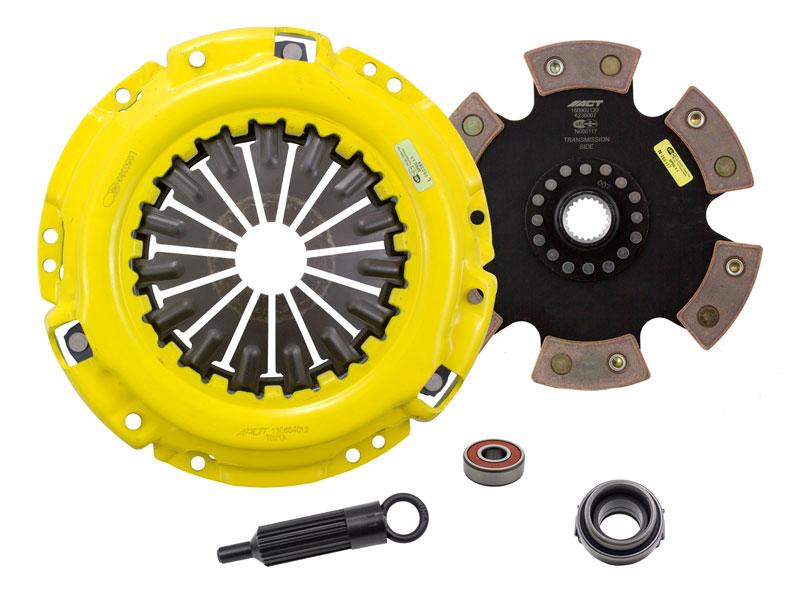

What's In The Box?

• Clutch Friction Disc (6236007)
• Clutch Alignment Tool (AT11)
• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB443)
• Clutch Pressure Plate (T021X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
