ACT XT/Race Rigid 4 Pad Kit | Multiple Fitments (TL2-XTR4)

ACT XT/Race Rigid 4 Pad Kit

TL2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 10.1
• Torque Capacity (ft/lbs.): 365
• Torque Capacity Over OE: 1.57
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 7.9
• Clutch Disc Diameter (mm): 200
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 1985-1985 Toyota MR2
• 1991-1998 Toyota Tercel
• 1986-1991 Toyota Corolla
• 1992-1998 Toyota Paseo
• 1989-1991 Geo Prizm
• 1985-1988 Chevrolet Nova

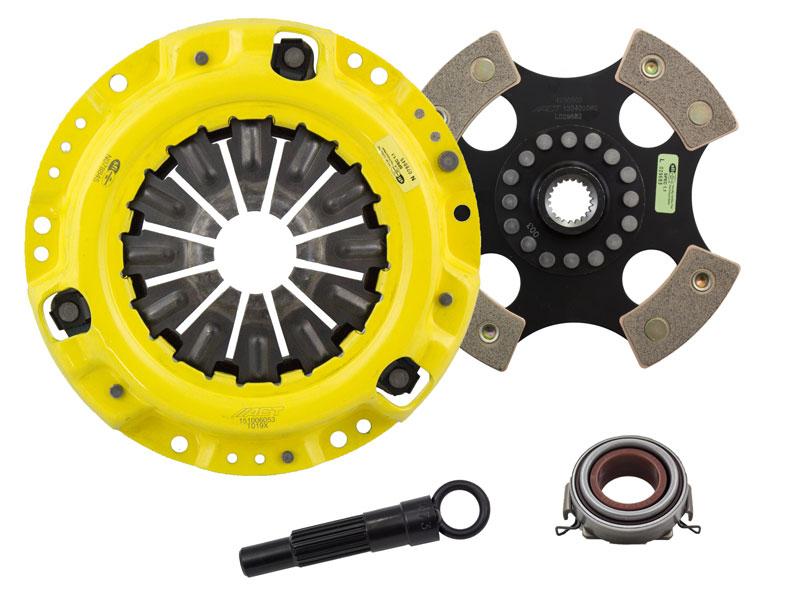

What's In The Box?

• Clutch Release Bearing (RB371)
• Clutch Pressure Plate (T019X)
• Clutch Friction Disc (4200003)
• Clutch Alignment Tool (ATK73)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
