ACT XT/Race Rigid 4 Pad Kit | Multiple Fitments (TC2-XTR4)

ACT XT/Race Rigid 4 Pad Kit

TC2-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 12.1
• Torque Capacity (ft/lbs.): 400
• Torque Capacity Over OE: 1.22
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375
• Alignment Tool Included: Yes

Applications

• 1992-2013 Toyota Corolla
• 2000-2005 Toyota MR2 Spyder
• 2003-2008 Pontiac Vibe
• 2003-2014 Toyota Matrix
• 1991-1997 Geo Prizm
• 1991-2005 Toyota Celica

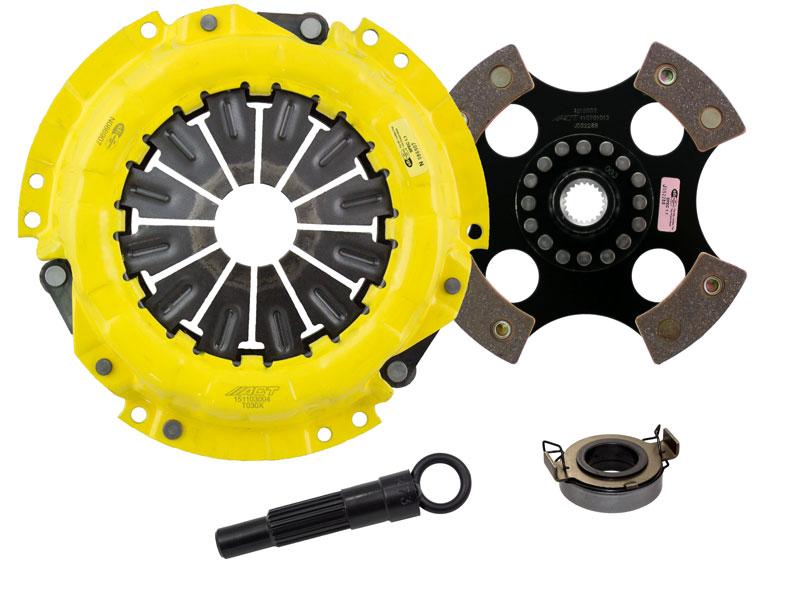

What's In The Box?

• Clutch Friction Disc (4212003)
• Clutch Alignment Tool (ATK73)
• Clutch Release Bearing (RB840)
• Clutch Pressure Plate (T030X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
