ACT XT/Race Rigid 4 Pad Kit | Multiple Fitments (MB3-XTR4)

ACT XT/Race Rigid 4 Pad Kit

MB3-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 10.2
• Torque Capacity (ft/lbs.): 420
• Torque Capacity Over OE: 1.49
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.4
• Clutch Disc Diameter (mm): 214
• Disc Material: Ceramic
• Input Spline Quantity: 20
• Input Shaft Diameter (in.): 0.875
• Alignment Tool Included: Yes

Applications

• 1993-1995 Hyundai Elantra
• 1992-1994 Hyundai Sonata
• 1990-1994 Mitsubishi Eclipse
• 1990-1994 Plymouth Laser
• 1988-2002 Mitsubishi Mirage
• 1989-1993 Mitsubishi Galant
• 1990-1994 Eagle Talon
• 1992-1994 Mitsubishi Expo LRV
• 1992-1996 Eagle Summit
• 1993-1995 Hyundai Scoupe
• 1989-1994 Dodge Colt
• 1992-1994 Plymouth Colt

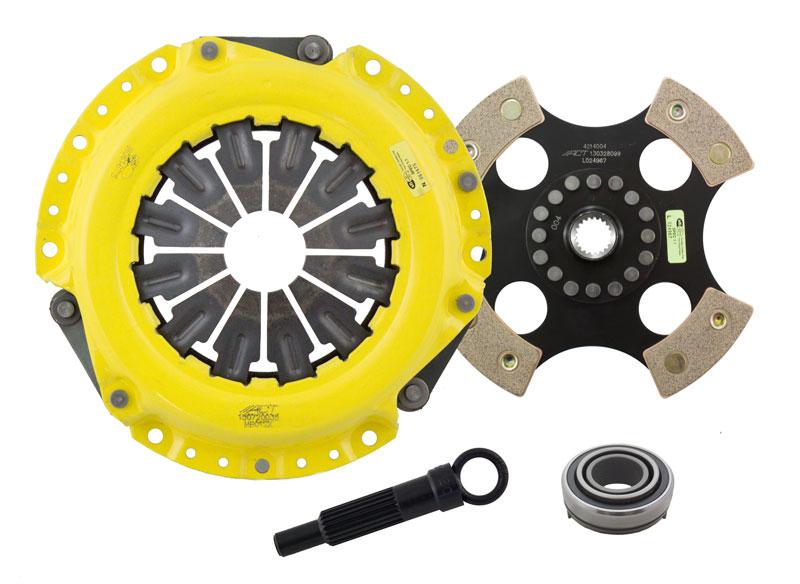

What's In The Box?

• Clutch Friction Disc (4214004)
• Clutch Alignment Tool (AT20)
• Clutch Pressure Plate (MB012X)
• Clutch Release Bearing (RB210)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
