ACT XT/Perf Street Sprung Kit | Multiple Fitments (TY4-XTSS)

ACT XT/Perf Street Sprung Kit

TY4-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Torque Capacity (ft/lbs.): 505
• Torque Capacity Over OE: 0.7
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes
• Product Weight (lbs.): 14.5

Applications

• 1999-2002 Toyota Solara
• 1992-2002 Toyota Camry
• 1992-1993 Lexus ES300

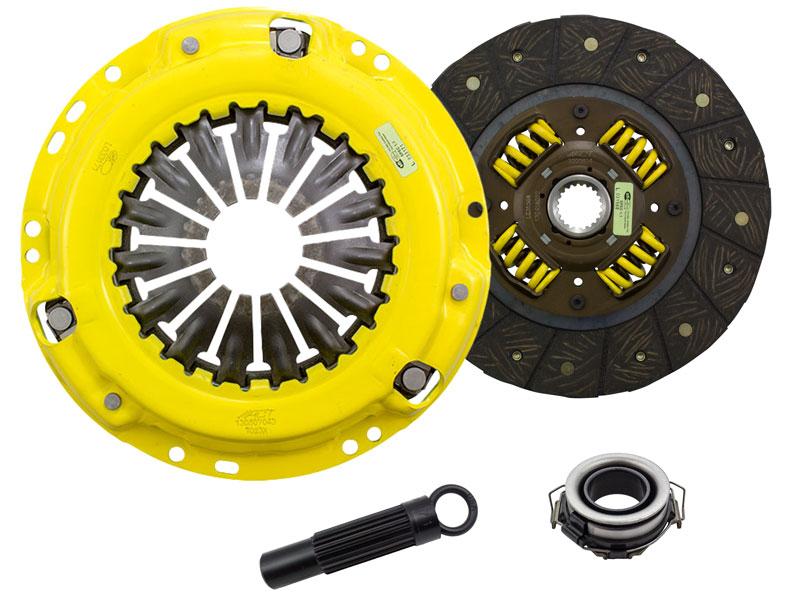

What's In The Box?

• Clutch Friction Disc (3000604)
• Clutch Alignment Tool (AT71)
• Clutch Release Bearing (RB446)
• Clutch Pressure Plate (T023X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
