ACT XT/Perf Street Sprung Kit | Multiple Fitments (TY3-XTSS)

ACT XT/Perf Street Sprung Kit

TY3-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

Features

• Product Weight (lbs.): 14.5
• Torque Capacity (ft/lbs.): 505
• Torque Capacity Over OE: 0.7
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Organic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 1988-1991 Toyota Camry
• 1988-1989 Toyota Celica
• 1996-2000 Toyota RAV4
• 1990-1991 Lexus ES250

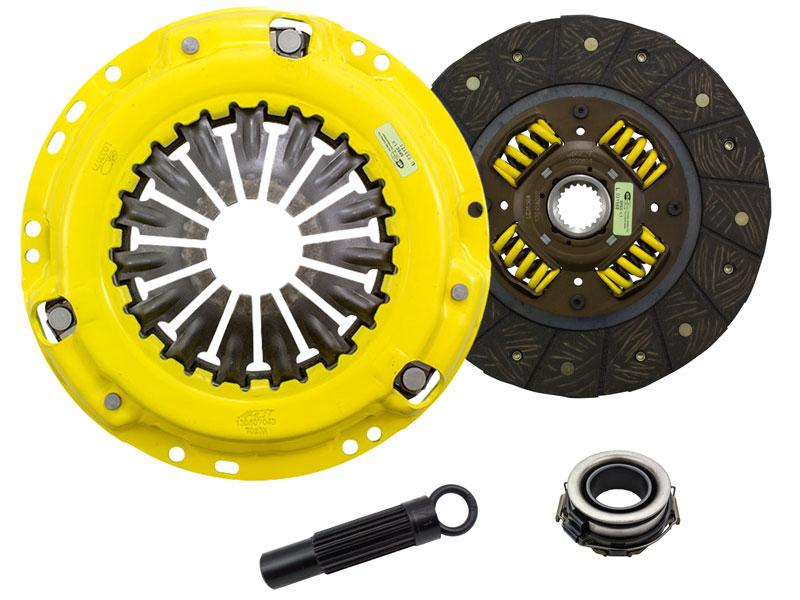

What's In The Box?

• Clutch Friction Disc (3000604)
• Clutch Alignment Tool (AT71)
• Clutch Release Bearing (RB219)
• Clutch Pressure Plate (T023X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
