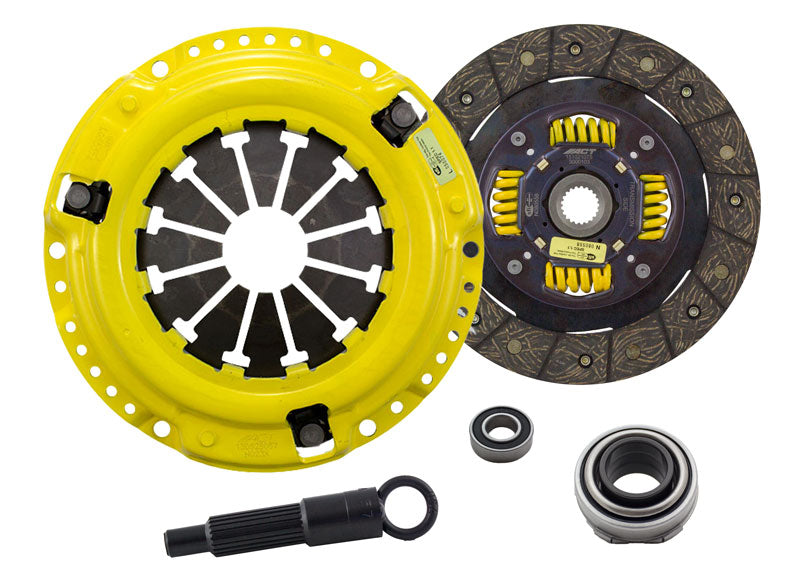

ACT XT/Perf Street Sprung Kit

HC6-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00837055006035
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 212
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Organic
• Disc Type Sprung Solid: Sprung
• Flywheel Bolts Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 0.875
• Input Spline Quantity: 21
• Part Fitment Requirement: Must use with 90-01 SOHC flywheel or ACT flywheel (not provided). 212mm upgrade.
• Pilot Bearing Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Xtreme
• Product Weight (lbs.): 10.5
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 295
• Torque Capacity Over OE: 94%

Extended Information:

• Country of Origin: KR
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 14 lb
