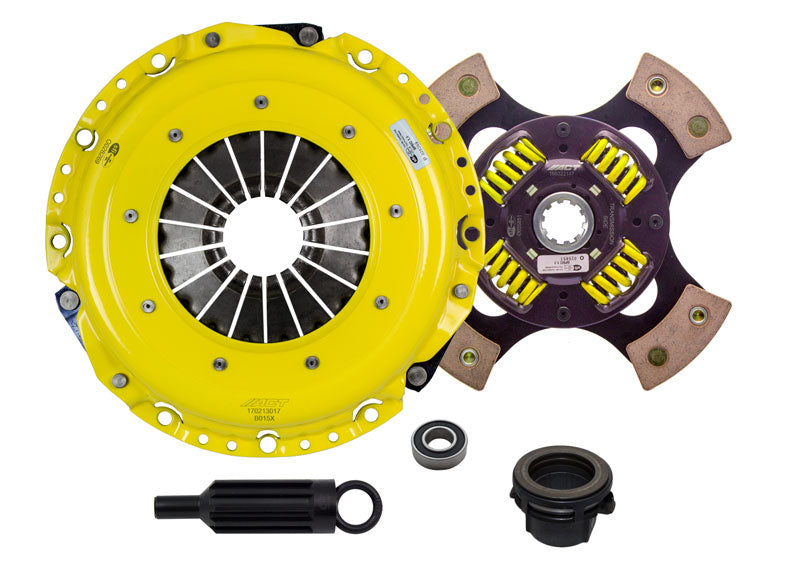

ACT XT-M/Race Sprung 4 Pad Kit

BM9-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385018153
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 240
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Ceramic
• Disc Type Sprung Solid: Sprung
• Flywheel Bolts Included: No
• Flywheel Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 1.375
• Input Spline Quantity: 10
• Part Fitment Requirement: Must use ACT flywheel with sprung hub discs for proper clearance (flywheel not included). Pressure plate bolts included (M8-1.25 x 20mm).
• Pilot Bearing Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: Yes
• Pressure Plate Type: Xtreme
• Product Weight (lbs.): 14.9
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 702
• Torque Capacity Over OE: 129%

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 18 x 6 inches
• Weight: 18.4 lb
