ACT Sport/Race Sprung 6 Pad Kit | 2008-2014 Scion xD (SC1-SPG6)

ACT Sport/Race Sprung 6 Pad Kit

SC1-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 12.6
• Torque Capacity (ft/lbs.): 285
• Torque Capacity Over OE: 0.59
• Pressure Plate Type: Sport
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375

Applications

• 2008-2014 Scion xD

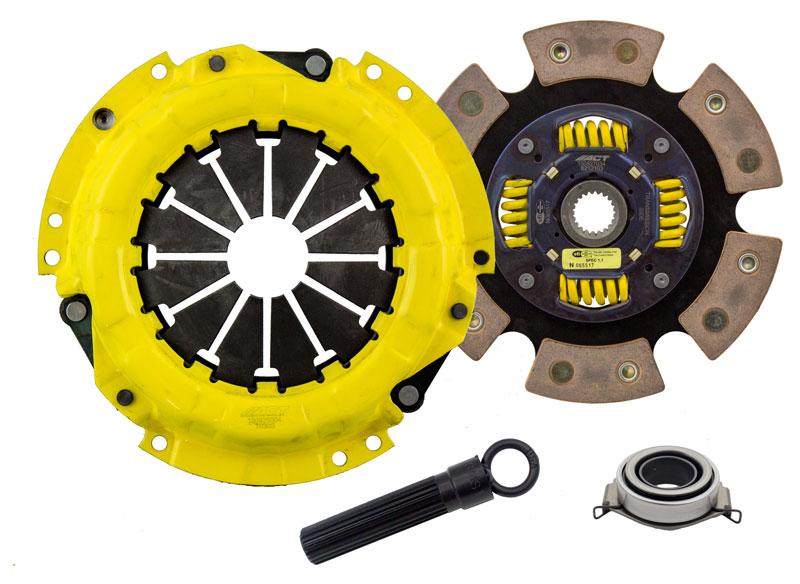

What's In The Box?

• Clutch Friction Disc (6212103)
• Clutch Release Bearing (RB124)
• Clutch Pressure Plate (T030S)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
