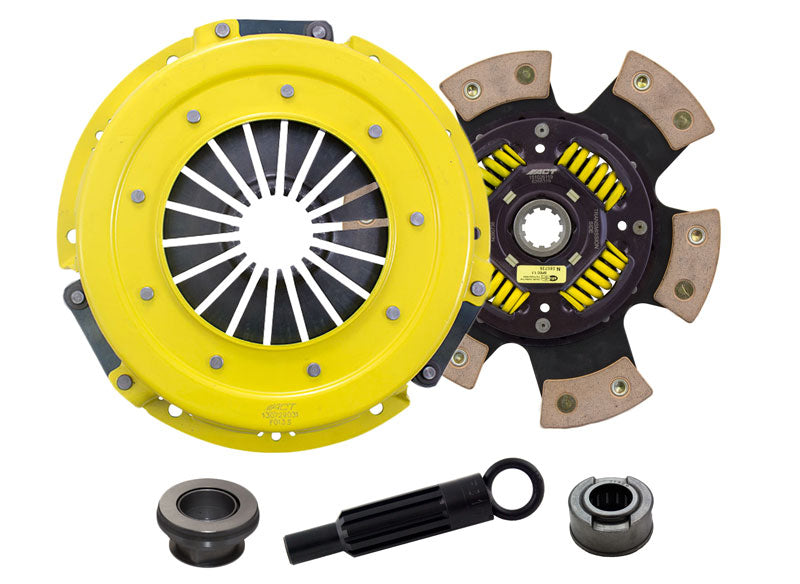

ACT Sport/Race Sprung 6 Pad Kit

FM7-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385011642
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 266
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Ceramic
• Disc Type Sprung Solid: Sprung
• Flywheel Bolts Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 1.0625
• Input Spline Quantity: 10
• Pilot Bearing Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Sport
• Product Weight (lbs.): 22.0
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 550
• Torque Capacity Over OE: 63%

Extended Information:

• Country of Origin: KR
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 25.5 lb
