ACT Sport/Race Rigid 4 Pad Kit | 2008-2014 Scion xD (SC1-SPR4)

ACT Sport/Race Rigid 4 Pad Kit

SC1-SPR4 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Features

• Product Weight (lbs.): 11.2
• Torque Capacity (ft/lbs.): 285
• Torque Capacity Over OE: 0.59
• Pressure Plate Type: Sport
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.3
• Clutch Disc Diameter (mm): 212
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 0.9375

Applications

• 2008-2014 Scion xD

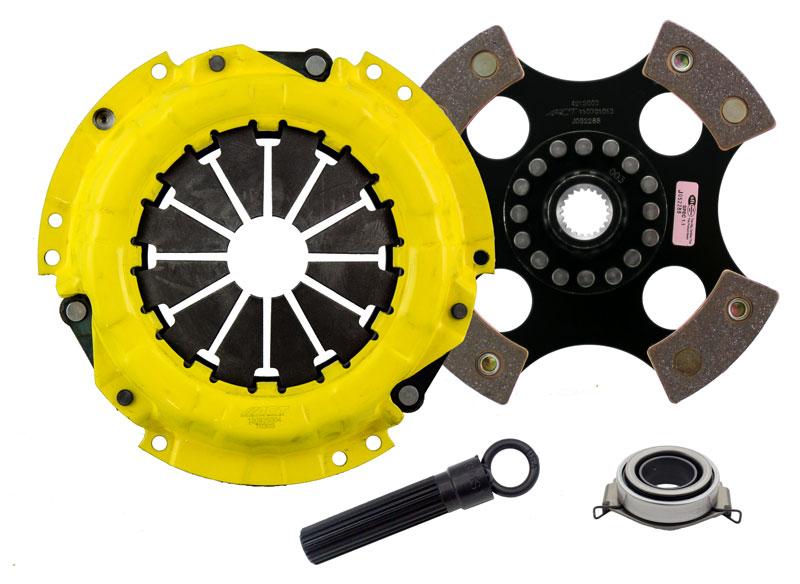

What's In The Box?

• Clutch Friction Disc (4212003)
• Clutch Release Bearing (RB124)
• Clutch Pressure Plate (T030S)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
