ACT P/PL Heavy Duty | Multiple Fitments (SB017)

ACT P/PL Heavy Duty

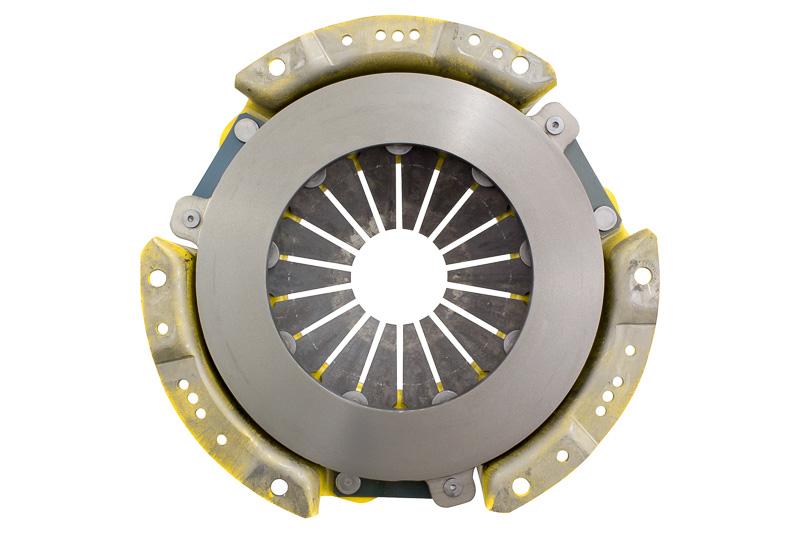

SB017 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

Features

• Part Fitment Requirement: Must be used with ACT flywheel and disc. Pressure plate bolts included (M8-1.25 x 16mm).
• Product Weight (lbs.): 10.6
• Type: Heavy Duty
• Diameter (in.): 8.8
• Diameter (mm): 225

Applications

• 2013-2019 Subaru BRZ
• 2013-2016 Scion FR-S
• 2017-2019 Toyota 86

What's In The Box?

• ACT P/PL Heavy Duty Pressure Plate

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
