ACT MaXX/Race Rigid 6 Pad Kit | Multiple Fitments (Z64-XXR6)

ACT MaXX/Race Rigid 6 Pad Kit

Z64-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 15.3
• Torque Capacity (ft/lbs.): 625
• Torque Capacity Over OE: 1.56
• Pilot Bushing Included: Yes
• Pressure Plate Type: MaXX
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.4
• Clutch Disc Diameter (mm): 240
• Disc Material: Ceramic
• Input Spline Quantity: 23
• Input Shaft Diameter (in.): 1
• Alignment Tool Included: Yes

Applications

• 1988-1991 Mazda 626
• 1988-1991 Mazda 929
• 1989-1992 Ford Probe
• 1988-1992 Mazda MX-6

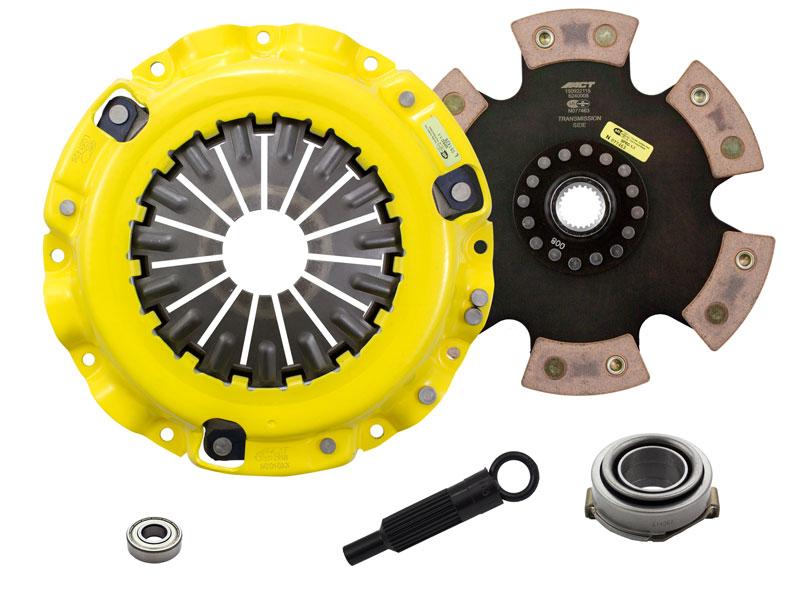

What's In The Box?

• Clutch Friction Disc (6240008)
• Clutch Alignment Tool (AT03)
• Clutch Pressure Plate (MZ010XX)
• Clutch Pilot Bearing (PB1005)
• Clutch Release Bearing (RB091)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
