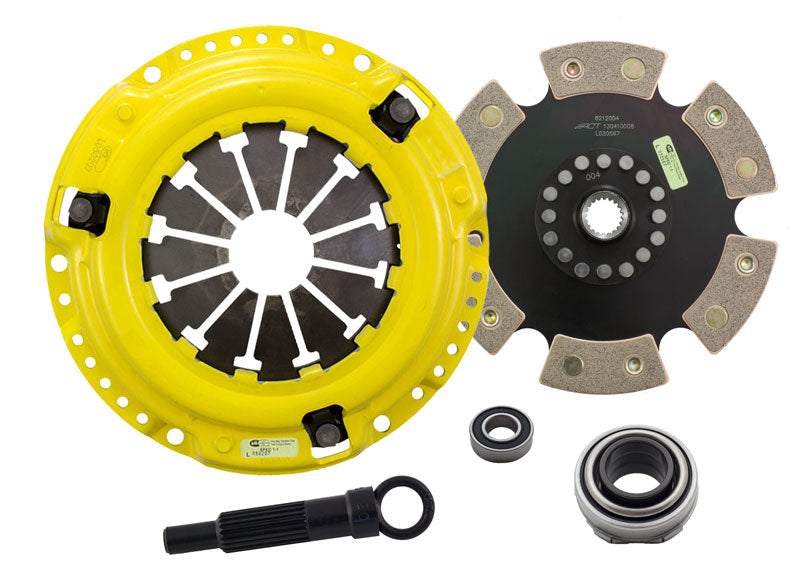

ACT MaXX/Race Rigid 6 Pad Kit

HC4-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385015138
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 212
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Ceramic
• Disc Type Sprung Solid: Solid
• Flywheel Bolts Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 0.875
• Input Spline Quantity: 20
• Pilot Bearing Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Maxx Xtreme
• Product Weight (lbs.): 10.4
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 420
• Torque Capacity Over OE: 173%

Extended Information:

• Country of Origin: Korea, Republic of
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 13.9 lb
