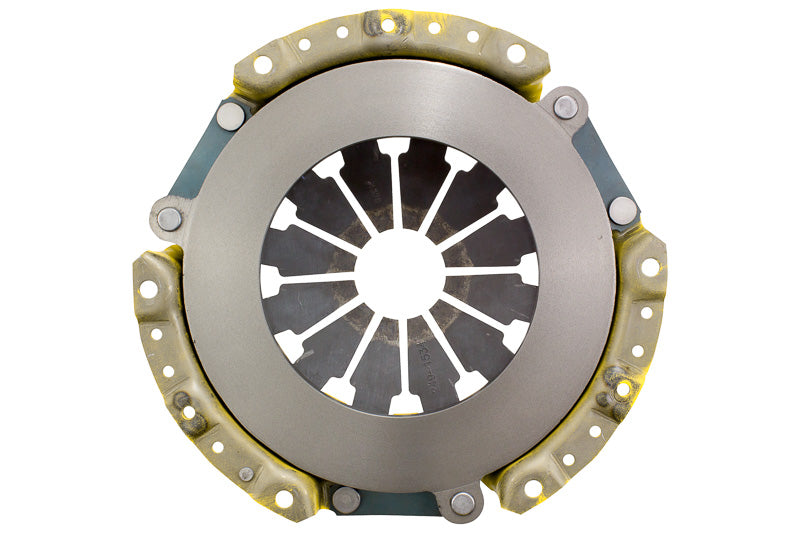

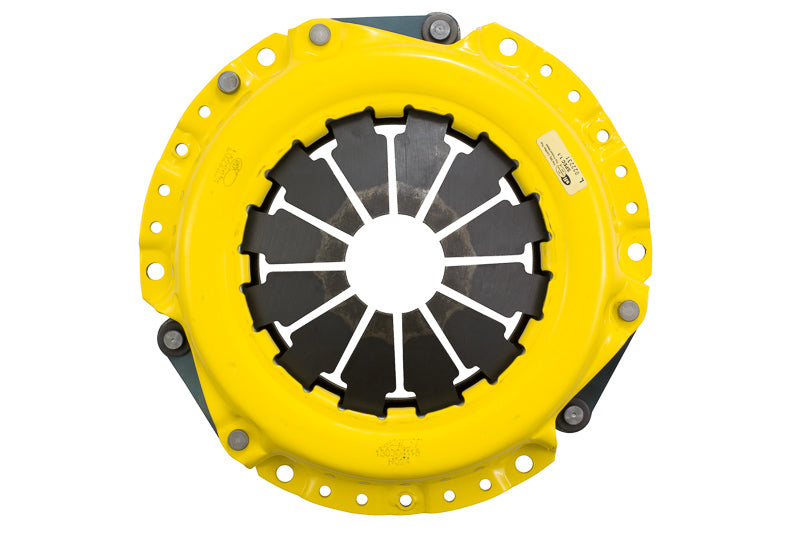

ACT Heavy Duty Pressure Plate

H024 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00837055000217
• Counterweight Assist: No
• Diameter: 214
• Grade Type: Performance
• Part Fitment Requirement: All non Type-S RSX models and 01-05 Civic Si models must use ACT flywheel or factory RSX Type S flywheel (not included in Kits).
• Product Weight (lbs.): 7.6
• SFI: 1.1
• Type: Heavy Duty

Extended Information:

• Country of Origin: KR
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 3 inches
• Weight: 9.6 lb

PDF:
