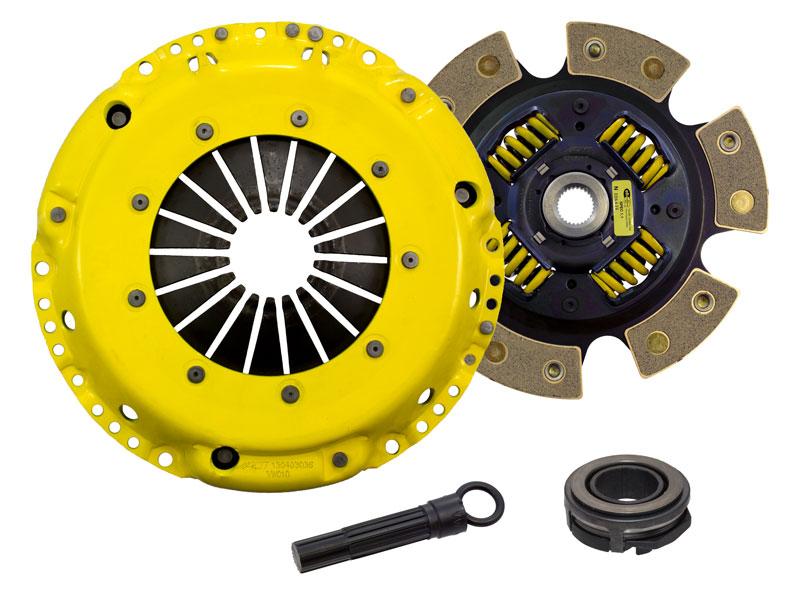

ACT HD/Race Sprung 6 Pad Kit | Multiple Fitments (VR1-HDG6)

ACT HD/Race Sprung 6 Pad Kit

VR1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 14.2
• Torque Capacity (ft/lbs.): 440
• Torque Capacity Over OE: 0.72
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9
• Clutch Disc Diameter (mm): 228
• Disc Material: Ceramic
• Input Spline Quantity: 28
• Input Shaft Diameter (in.): 0.875
• Alignment Tool Included: Yes

Applications

• 1995-2005 Volkswagen Jetta
• 1990-1997 Volkswagen Passat
• 1995-2005 Volkswagen Golf
• 1999-2004 Volkswagen Beetle
• 1992-1996 Volkswagen EuroVan
• 1990-1994 Volkswagen Corrado
• 1999-2002 Audi TT

What's In The Box?

• Clutch Friction Disc (6228215)
• Clutch Alignment Tool (AT96)
• Clutch Release Bearing (RB803)
• Clutch Pressure Plate (VW010)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
