ACT HD/Race Sprung 6 Pad Kit | Multiple Fitments (TY3-HDG6)

ACT HD/Race Sprung 6 Pad Kit

TY3-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Product Weight (lbs.): 15
• Torque Capacity (ft/lbs.): 500
• Torque Capacity Over OE: 0.69
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 1996-2000 Toyota RAV4
• 1988-1989 Toyota Celica
• 1990-1991 Lexus ES250
• 1988-1991 Toyota Camry

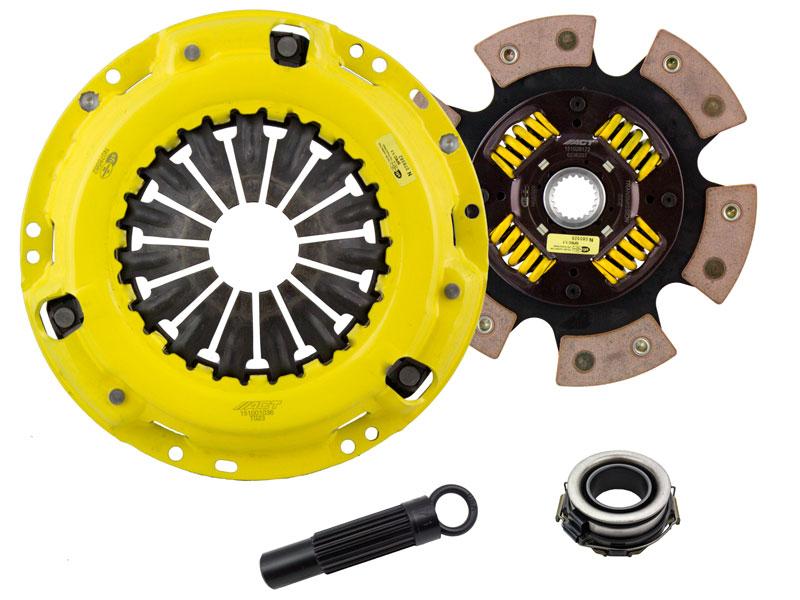

What's In The Box?

• Clutch Release Bearing (RB219)
• Clutch Pressure Plate (T023)
• Clutch Friction Disc (6236207)
• Clutch Alignment Tool (AT71)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
