ACT HD/Race Sprung 4 Pad Kit | Multiple Fitments (TC7-HDG4)

ACT HD/Race Sprung 4 Pad Kit | Multiple Fitments (TC7-HDG4)

Regular price $497.80 USD
Regular price $654.48 USD Sale price $497.80 USD
Sale Sold out
Shipping calculated at checkout.

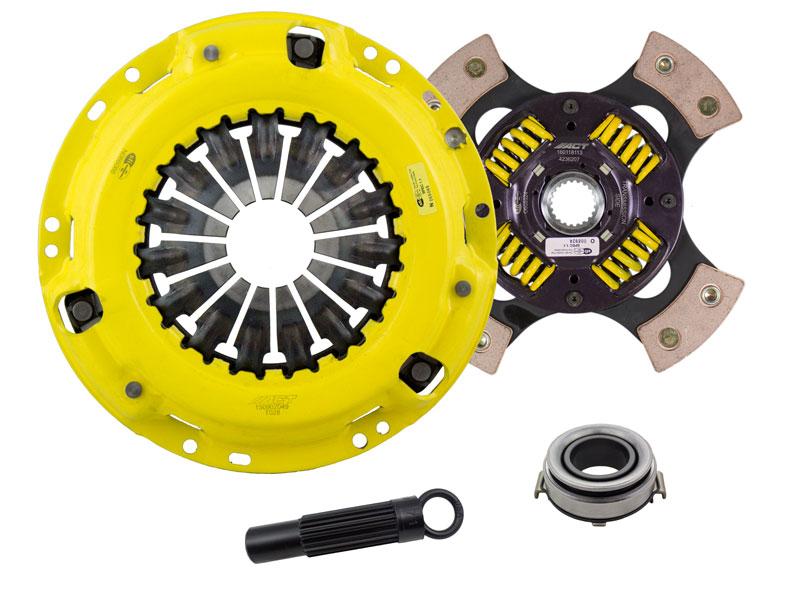

ACT HD/Race Sprung 4 Pad Kit

TC7-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

Features

  • Alignment Tool Included: Yes
  • Product Weight (lbs.): 14.8
  • Torque Capacity (ft/lbs.): 400
  • Torque Capacity Over OE: 0.65
  • Pressure Plate Type: Heavy Duty
  • Release Bearing Included: Yes
  • Clutch Disc Diameter (in.): 9.3
  • Clutch Disc Diameter (mm): 236
  • Disc Material: Ceramic
  • Input Spline Quantity: 21
  • Input Shaft Diameter (in.): 1.125

Applications

  • 2008-2015 Scion xB
  • 2007-2008 Toyota Camry
  • 2009-2012 Toyota Corolla
  • 2006-2010 Scion tC
  • 2009-2013 Toyota Matrix

What's In The Box?

  • Clutch Friction Disc (4236207)
  • Clutch Alignment Tool (AT71)
  • Clutch Release Bearing (RB084)
  • Clutch Pressure Plate (T028)

References

Warranty

  • Manufacturer 1 Year Warranty
