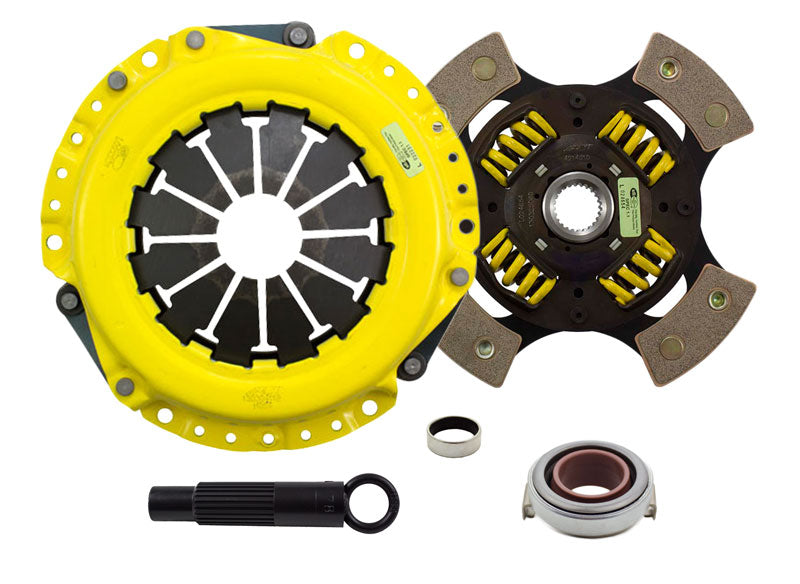

ACT HD/Race Sprung 4 Pad Kit

AR1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385004170
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 214
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Ceramic
• Disc Type Sprung Solid: Sprung
• Flywheel Bolts Included: No
• Flywheel Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 1.03125
• Input Spline Quantity: 24
• Pilot Bearing Included: No
• Pilot Bushing Included: Yes
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Heavy Duty
• Product Weight (lbs.): 11.2
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 330
• Torque Capacity Over OE: 73%

Extended Information:

• Country of Origin: Korea, Republic of
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 14.7 lb
