ACT HD/Perf Street Rigid Kit | Multiple Fitments (HY2-HDSD)

ACT HD/Perf Street Rigid Kit

HY2-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.

Features

• Part Fitment Requirement: Designed for use with stock dual-mass flywheel.
• Product Weight (lbs.): 11.6
• Torque Capacity (ft/lbs.): 305
• Torque Capacity Over OE: 0.31
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Organic
• Input Spline Quantity: 20
• Input Shaft Diameter (in.): 0.875

Applications

• 2002-2005 Hyundai Sonata
• 2001-2004 Hyundai Santa Fe
• 2003-2008 Hyundai Tiburon
• 2001-2006 Kia Optima

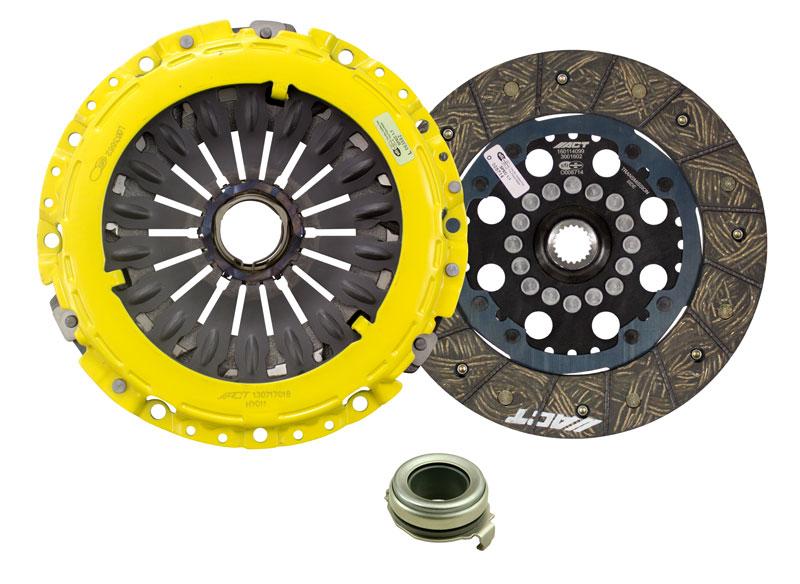

What's In The Box?

• Clutch Friction Disc (3001602)
• Clutch Pressure Plate (HY011)
• Clutch Release Bearing (RB104)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
