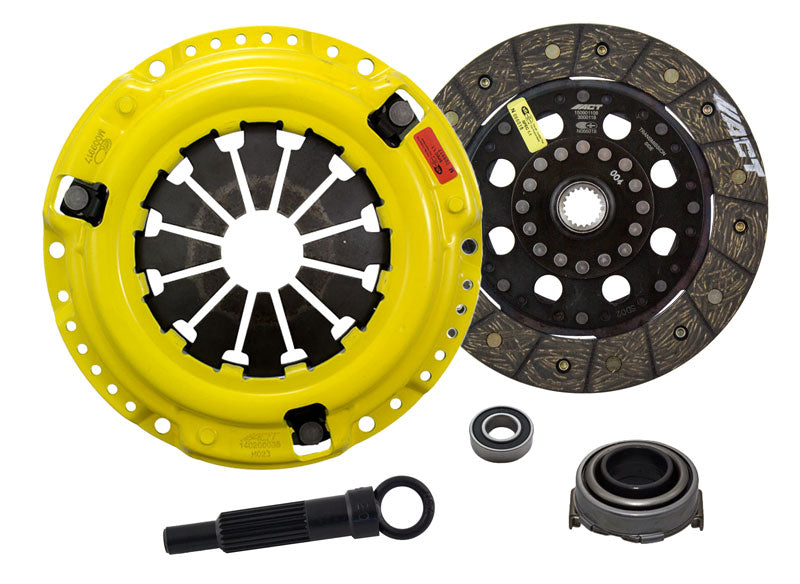

ACT HD/Perf Street Rigid Kit

HC5-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's street rigid-hub discs provide race-proven performance with street manageability.

• "Excellence in Performance", backed by the best one-year warranty in the industry!

Attributes:

• Brand Name: Advanced Clutch
• GTIN: 00842385012915
• Alignment Tool Included: Yes
• Clutch Disc Diameter: 212
• Clutch Master Cylinder Included: No
• Clutch Slave Cylinder Included: No
• Disc Material: Organic
• Disc Type Sprung Solid: Solid
• Flywheel Bolts Included: No
• Grade Type: Performance
• Grease Included: Yes
• Input Shaft Diameter: 0.875
• Input Spline Quantity: 20
• Pilot Bearing Included: Yes
• Pilot Bushing Included: No
• Pressure Plate Bolts Included: No
• Pressure Plate Type: Heavy Duty
• Product Weight (lbs.): 10.4
• Release Bearing Included: Yes
• Torque Capacity (ft/lbs.): 235
• Torque Capacity Over OE: 44%

Extended Information:

• Country of Origin: KR
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 5 inches
• Weight: 13.9 lb
