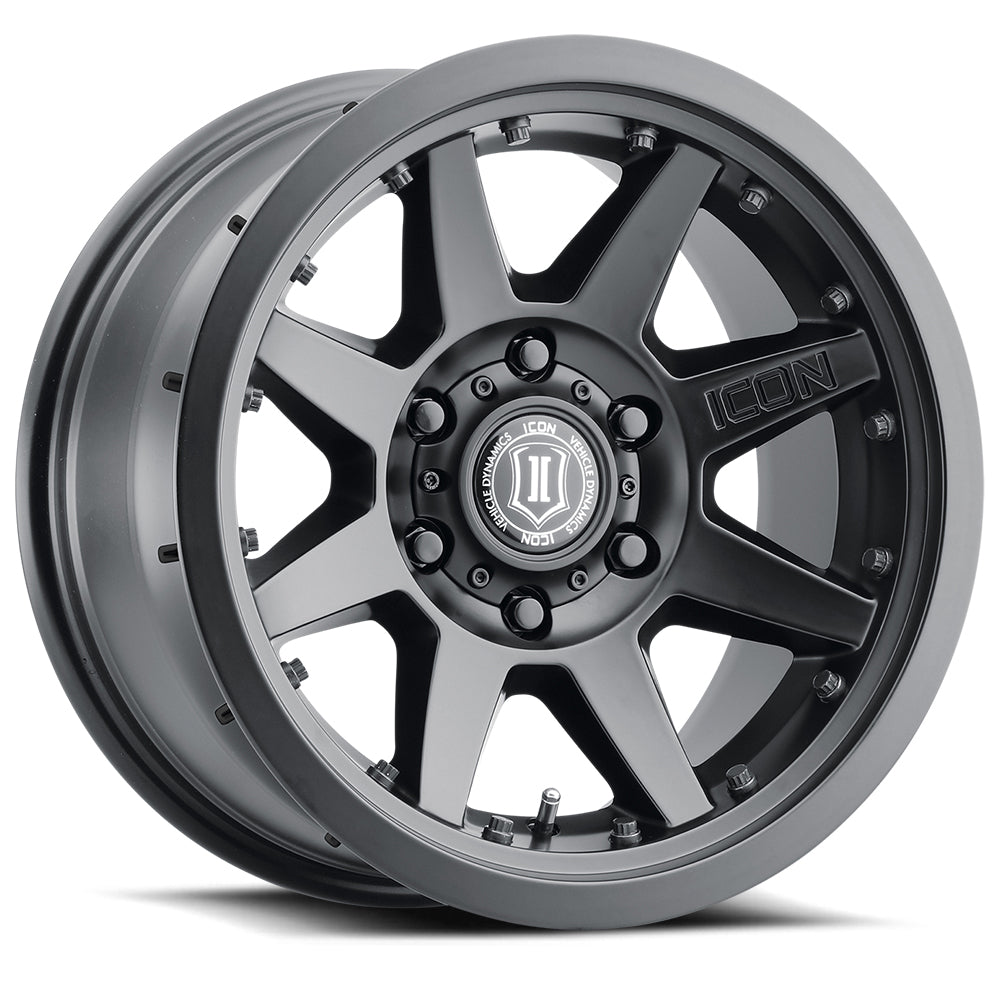

ICON ALLOYS REBOUND PRO SAT BLK - 17 X 8.5 / 6X5.5 / 0MM / 4.75" BS

Staying true to the ICON Alloys approach, the Rebound PRO has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The Rebound PRO has also been strength tested to yield a 3,200lb load rating - making it one of the strongest wheel options on the market. With build features such as these, it's clear that a set of ICON Alloys wheels is the perfect complement to any truck, Jeep, or SUV.

• Engineered for DOT compliance
• Aluminum alloy construction provides strength properties that are well suited for off-road use
• Super strong 3200 lbs load rating
• Patented InnerLock technology (U.S. Patent No. 11,090,976) provides the ultimate blend of on-road safety and off-road performance, ideal for the “weekend warrior”
• Bead retention system features alloy pins that are removable, reusable, and replaceable
• Hardened bead retention pins utilize a SAE J1926 O-ring seal and are constructed from high strength alloy that is thermochemically treated for extreme corrosion resistance
• Quick, easy, and safe tire installation and removal
• Strategically placed hardware for maximum protection from trail damage
• Compatible with a wide variety of tires without the need for any shims or special tools
• Application-specific dimensions optimize vehicle dynamics and tire clearance
• Reduced unsprung weight and rotating mass (compared to a traditional bead lock) improves handling characteristics and vehicle dynamics

Attributes:

• Brand Name: ICON Alloys
• GTIN: 00840103411392
• California Prop 65 Warning: Yes
• Construction: Cast
• Lug Nut Seat Type: Conical
• Maximum Load Rating: 3200
• Tires Included: No
• Wheel Nuts Included: No
• Wheel Size: 17x8.5
• 10: Aluminum
• 17: Satin Black
• 18: 106.1
• 24: 8.5
• 111: 17
• 153: Bead Retention
• 200: Powdercoated
• 1712: 1.1
• 3032: 6
• 3775: No
• 3776: 0
• 3777: 0
• 3778: Yes
• 4916: 8
• 8526: 0
• 8763: yes
• 9097: 4.75
• 9098: 6 X 5.5
• 9099: No

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 20.0000 x 20.0000 x 11.0000 inches
• Weight: 32.0000 lb
