AeroCatch Black Xtreme Series 120 Plus Flush Hood Fasteners built-in Security Lock
AeroCatch Black Xtreme Series 120 Plus Flush Hood Fasteners built-in Security Lock
British-made AeroCatch sets new standards in panel fixing for the 21st century, providing a wide variety of fixing solutions for the Motorsport, Specialist Vehicle, Marine, Transportation and Packaging industries. The efficient shear pin locking operation evolved after many hours of 3D computer modelling. Prototypes proved all high performance design criteria had been met including security, functionality, safety, ease of installation and operation, aesthetic styling and optional secondary locking.
AeroCatch carried out projects together with commercial engineering division of Exeter University, XAT. XAT were also researched suitable material that would operate under extreme conditions. A lightweight, glass reinforced engineering thermoplastic resulted, which robust, non-corrosive and can be spray-painted exactly as convential materials.
The aerodynamically efficient and styled AeroCatch 120 Series is setting new standards in panel fixing, providing a wide variety of fixing solutions for bodywork on vehicles. Options to mount and operate in top or side positions making suitable for lift off and hinged panels. Security lock fitted and supplied with 4 keys.
Schematic Dimensions of AeroCatch 120 Series
Features:
- Above Panel Xtreme Locking Simple installation
- Aluminium strike pins
- Lightweight, high strength
- Corrosion resistant and UV stable
- Top or side mounting
- Handle visible if not closed correctly
- Non trip hazard in closed position

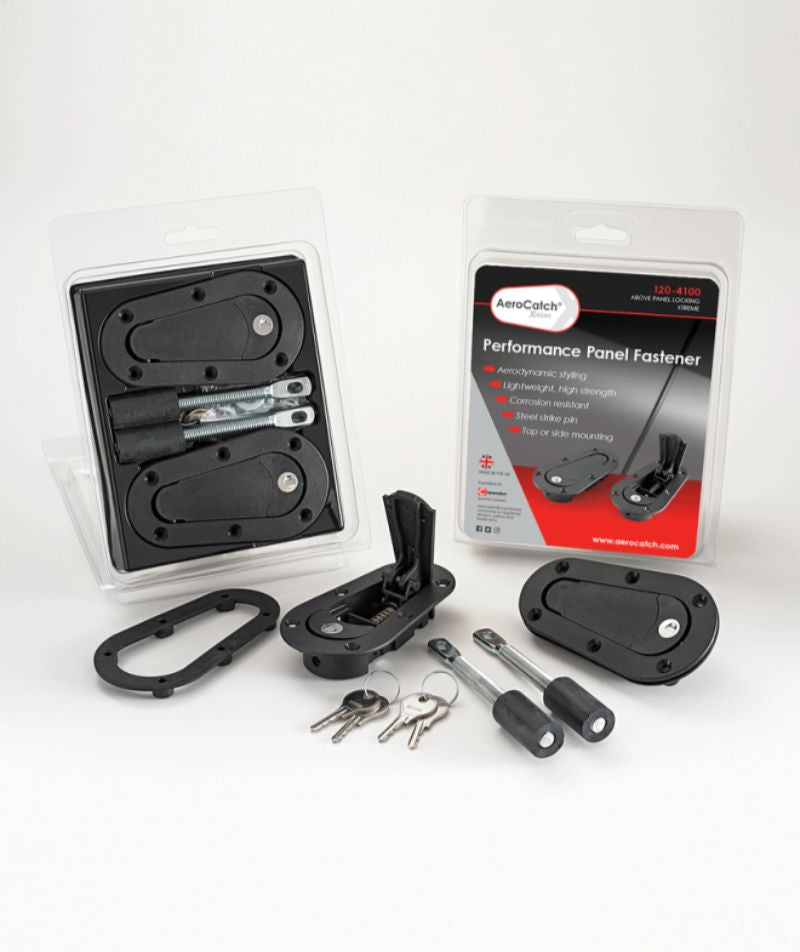

- Includes: 2 AeroCatch, 2 Nut Plates, 2 Aluminium Strike Pins, 2 Rubber Bump Stops, 1 Fastener Kit, 1 Arrow Sticker Set, 4 Keys
