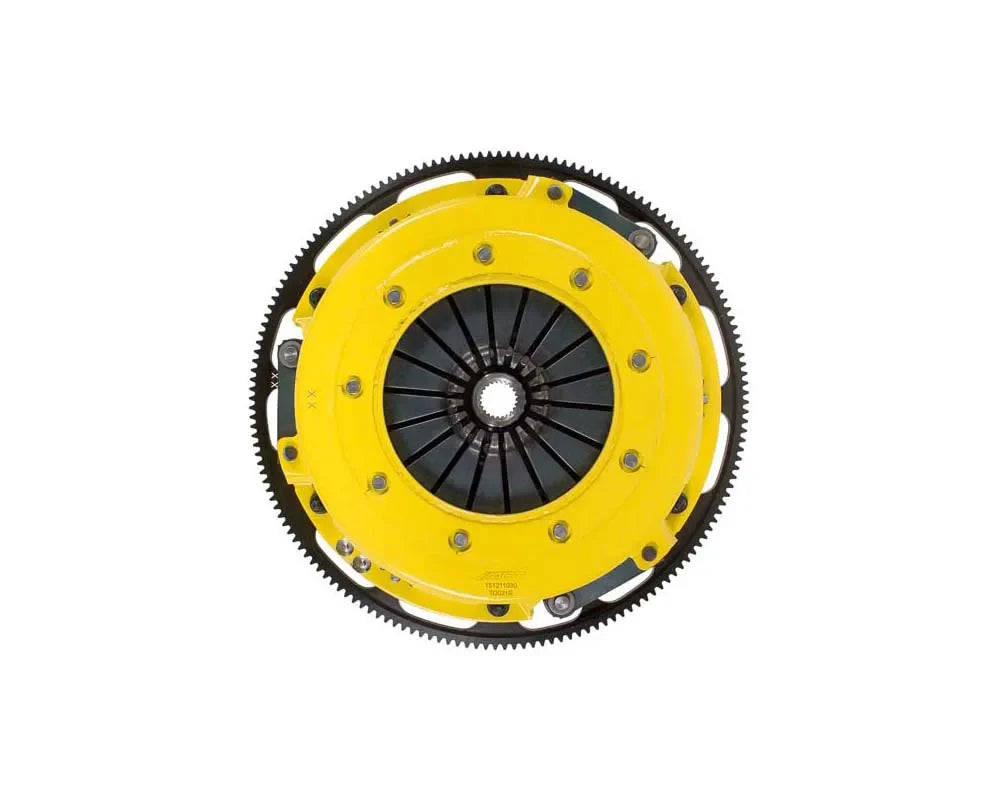

Advanced Clutch Twin Disc XT Street Kit | (T2S-F05)

Advanced Clutch Twin Disc XT Street Kit T2S-F05 street twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits undergo an exclusive four-stage, heat treating process on all diaphragms. The ACT twin disc features the ability to adjust for disc wear and provides equal disengagement for discs. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.

• Moderate to heavy pedal effort, smooth engagement, OE to moderate gear rattle
• Disc surfaces doubled for better wear, heat capacity and longer life, further extended by ACT's exclusive diaphragm design
• Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended for high horsepower street or race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• Clutch Master Cylinder Included: No
• Grease Included: Yes
• Grade Type: Performance
• Flywheel Included: Yes
• Pilot Bushing Included: No
• Release Bearing Included: No
• Clutch Disc Diameter: 10.5 in
• Clutch Disc Diameter: 267 mm
• Disc Material: Organic
• Input Spline Quantity: 23
• Input Shaft Diameter: 1 in
• Alignment Tool Included: Yes
• Disc Type Sprung Solid: Solid
• Pressure Plate Bolts Included: No
• Clutch Slave Cylinder Included: No
• Flywheel Bolts Included: No
• Pilot Bearing Included: Yes
• Product Weight (lbs.): 44.1
• SFI: 1.2
• Torque Capacity (ft/lbs.): 986
• Torque Capacity Over OE: 1.06

References

• Installation Instructions



Applications

• 2011 Ford Mustang GT
• 2012 Ford Mustang GT
• 2012 Ford Mustang Boss 302
• 2013 Ford Mustang GT
• 2013 Ford Mustang Boss 302
• 2014 Ford Mustang GT
• 2015 Ford Mustang GT
• 2015 Ford Mustang GT Premium
• 2015 Ford Mustang GT 50 Years Limited Edition
• 2016 Ford Mustang Base
• 2016 Ford Mustang GT
• 2016 Ford Mustang GT Premium
• 2017 Ford Mustang GT
• 2017 Ford Mustang V8
• 2017 Ford Mustang GT Premium
