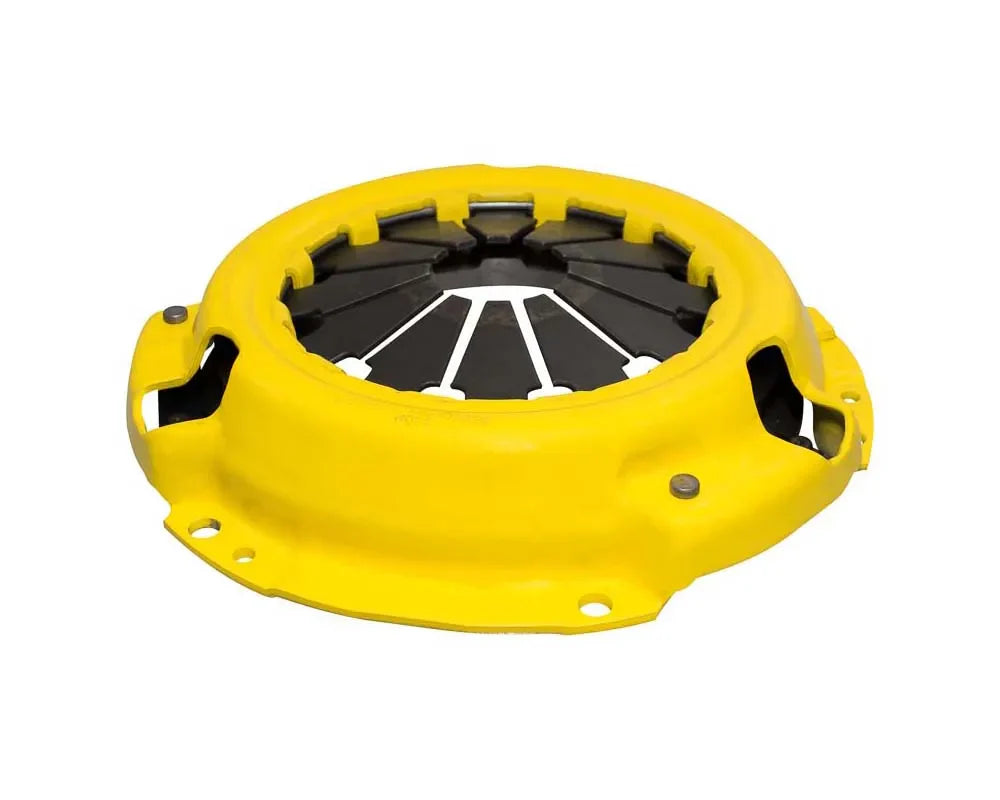

Advanced Clutch Heavy Duty Pressure Plate | (H031)

Advanced Clutch Heavy Duty Pressure Plate H031 pressure plate features an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All ACT diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Heavy Duty pressure plates increase clamp load by 20 to 50 percent. The Heavy Duty pressure plates are recommended for use with a street or race disc.

• Must be used with ACT pressure plate, disc and flywheel (not included).

• Light to moderate pedal effort, positive engagement
• Available disc life extended by ACT's exclusive diaphragm design
• Carefully engineered for improved durability, precisely assembled and accurately balanced
• Recommended for street and race use
• 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

• Diameter: 9.4 in
• Diameter: 240 mm
• Type: Heavy Duty
• Grade Type: Performance
• Counterweight Assist: No
• Product Weight (lbs.): 10.7
• SFI: 1.1

References

• Installation Instructions



Applications

• 2015 Honda Accord EX-L
• 2016 Honda Accord EX-L
• 2017 Honda Accord EX-L
• 2003 Acura CL Type-S
• 2004 Acura TL Base
• 2005 Acura TL Base
• 2006 Acura TL Base
• 2007 Acura TL Type-S
• 2008 Acura TL Type-S
• 2003 Honda Accord EX
• 2004 Honda Accord EX
• 2005 Honda Accord EX
• 2006 Honda Accord EX
• 2007 Honda Accord EX
• 2007 Honda Accord EX-L
• 2008 Honda Accord EX
• 2008 Honda Accord EX-L
• 2009 Honda Accord EX
• 2009 Honda Accord EX-L
• 2010 Honda Accord EX
• 2010 Honda Accord EX-L
• 2011 Honda Accord EX
• 2011 Honda Accord EX-L
• 2012 Honda Accord EX
• 2012 Honda Accord EX-L
• 2012 Honda Accord HFP
• 2013 Honda Accord EX-L
• 2014 Honda Accord EX-L
