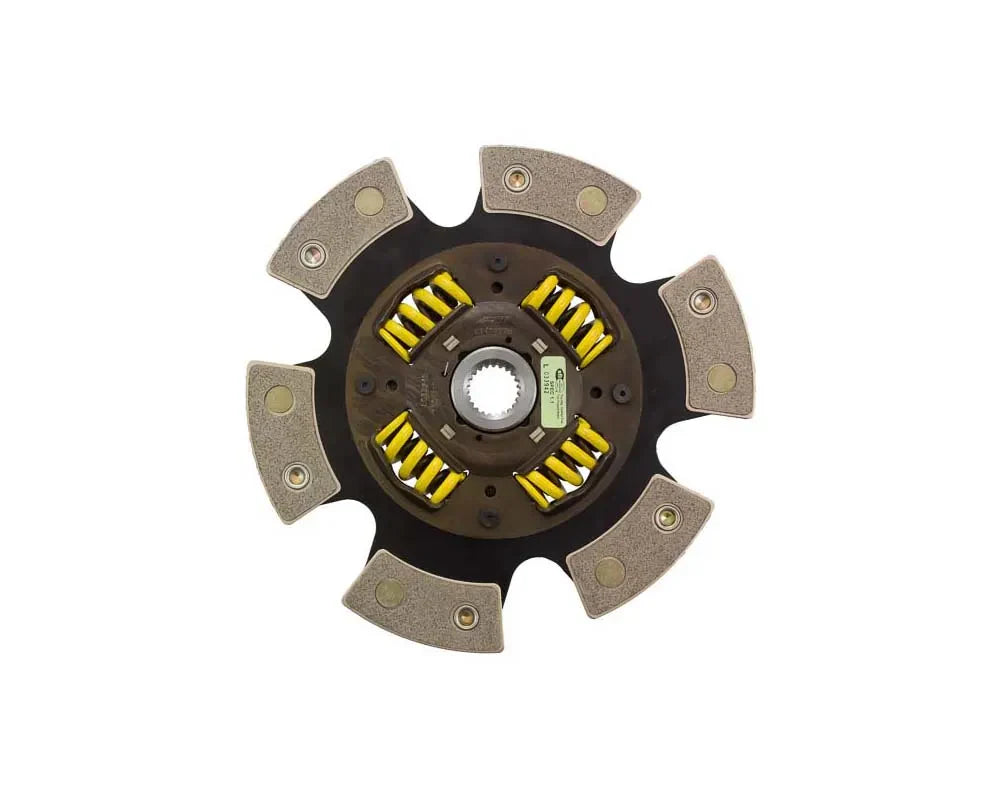

Advanced Clutch 6 Pad Sprung Race Disc | (6240227B)

Advanced Clutch 6 Pad Sprung Race Disc 6240227B is a 6-pad spring-centered race discs made with high quality ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat and for smoother engagement.

• Must be used with aftermarket single-mass flywheel. Not for use with OE dual-mass flywheel.

• Aggressive engagement, quick shifts, mild to moderate gear rattle
• Premium ceramic friction materials provide moderate wear rates and high heat tolerance
• Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability
• Recommended for high horsepower street or race use
• High burst strength and holds 28% more torque than typical organic materials

• Diameter: 9.4 in
• Diameter: 240 mm
• Spline Quantity: 23
• Grade Type: Performance
• Friction Plate: No
• Disc Material: Ceramic
• Splined Bore Diameter: 0.9375 in
• Disc Type: Sprung
• Product Weight (lbs.): 3.9
• SFI: 1.1

References

• Installation Instructions



Applications

• 2004 Audi S4 Base
• 2004 Audi S4 Cabriolet
• 2004 Audi S4 Avant
• 2005 Audi S4 Base
• 2005 Audi S4 Cabriolet
• 2005 Audi S4 Avant
• 2006 Audi S4 Base
• 2006 Audi S4 Cabriolet
• 2006 Audi S4 Avant
• 2007 Audi RS4 Base
• 2007 Audi RS4 Base
• 2007 Audi S4 Base
• 2007 Audi S4 Cabriolet
• 2007 Audi S4 Avant
• 2008 Audi S4 Base
• 2008 Audi S4 Cabriolet
• 2008 Audi S4 Avant
• 2008 Audi RS4 Base
• 2008 Audi RS4 Base
• 2008 Audi RS4 Cabriolet
• 2009 Audi S4 Cabriolet
