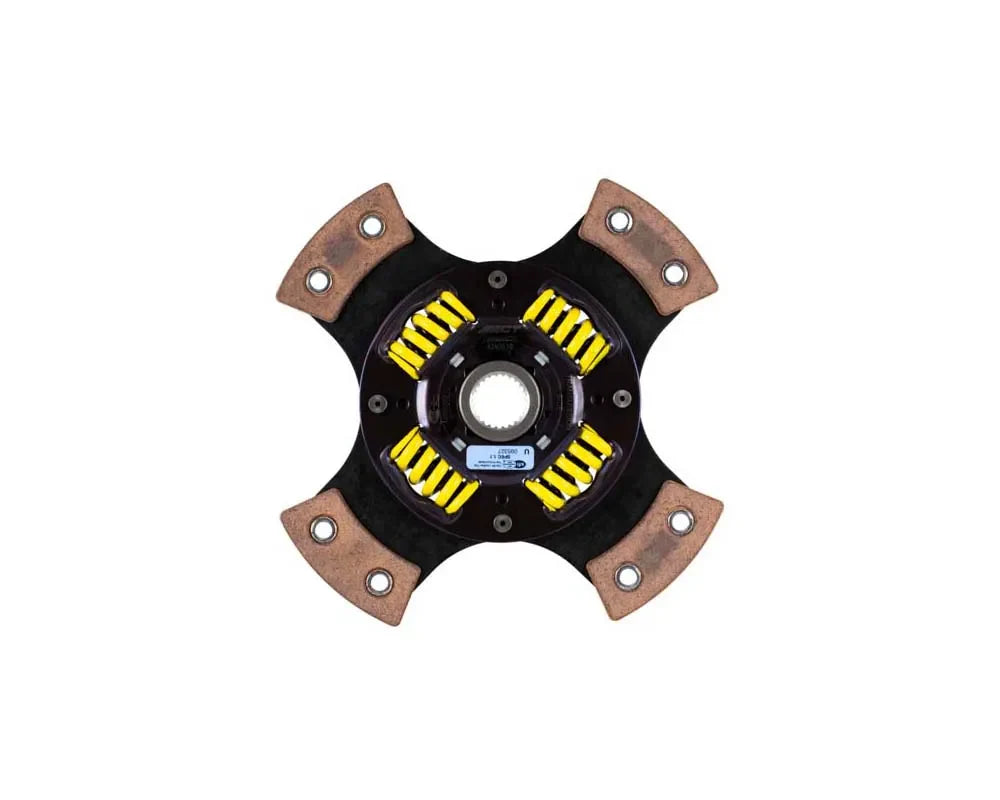

Advanced Clutch 4 Pad Sprung Race Disc | (4240510)

Advanced Clutch 4 Pad Sprung Race Disc 4240510 is a 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.

• Must be used with ACT pressure plate and flywheel (not included).

• Aggressive engagement, quick shifts, OE to mild gear rattle
• Premium ceramic friction materials provide moderate wear rates and high heat tolerance
• Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability
• Recommended for race use only
• High burst strength and holds 28% more torque than typical organic materials

• Diameter: 9.4 in
• Diameter: 240 mm
• Spline Quantity: 24
• Grade Type: Performance
• Friction Plate: No
• Disc Material: Ceramic
• Splined Bore Diameter: 1.03125 in
• Disc Type: Sprung
• Product Weight (lbs.): 3.2
• SFI: 1.1

References

• Installation Instructions



Applications

• 2023 Acura Integra A-Spec
• 2018 Honda Accord LX
• 2018 Honda Accord Sport
• 2019 Honda Accord Sport
• 2020 Honda Accord Sport
• 2017 Honda Civic EX-T
• 2017 Honda Civic LX
• 2017 Honda Civic Si
• 2017 Honda Civic Sport
• 2017 Honda Civic Sport Touring
• 2017 Honda Civic Type R
• 2018 Honda Civic EX
• 2018 Honda Civic EX-L
• 2018 Honda Civic EX-T
• 2018 Honda Civic LX
• 2018 Honda Civic Si
• 2018 Honda Civic Sport
• 2018 Honda Civic Touring
• 2018 Honda Civic Type R
• 2019 Honda Civic LX
• 2019 Honda Civic Si
• 2019 Honda Civic Sport
• 2019 Honda Civic Type R
• 2020 Honda Civic LX
• 2020 Honda Civic Sport
• 2020 Honda Civic Sport Touring
• 2020 Honda Civic Type R
• 2021 Honda Civic Sport
• 2021 Honda Civic Sport Touring
• 2021 Honda Civic Type R
• 2022 Honda Civic Si
• 2022 Honda Civic Sport
• 2022 Honda Civic Sport Touring
• 2023 Honda Civic Si
• 2023 Honda Civic Sport Touring
• 2024 Acura Integra A-Spec
• 2024 Acura Integra Type S
• 2023 Honda Civic Type R
• 2024 Honda Civic Si
• 2024 Honda Civic Sport Touring
• 2024 Honda Civic Type R
• 2025 Honda Civic Si
• 2025 Honda Civic Type R
• 2025 Acura Integra A-Spec
• 2025 Acura Integra Elite A-Spec
• 2025 Acura Integra Type S
• 2023 Acura Integra Elite A-Spec
• 2024 Acura Integra Elite A-Spec
• 2020 Honda Civic Si
