ACT 6-Pad Rigid Heavy Duty Racing Clutch Kit | 2003-2005 Dodge Neon SRT-4 (DN4-HDR6)
ACT 6-Pad Rigid Heavy Duty Racing Clutch Kit | 2003-2005 Dodge Neon SRT-4 (DN4-HDR6)
Couldn't load pickup availability
HD/Race Rigid 6 Pad Clutch Kit with Flywheel - DN4-HDR6
DN4-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
Features
- Item Description HD/Race Rigid 6 Pad
- Product Weight (lbs.) 25.2
- Torque Capacity (ft/lbs.) 595
- Torque Capacity Over OE 88%
- Disc Material Ceramic
- Friction Surface Diameter (Inches) 9.4
- Friction Surface Diameter (mm) 240
- Input Shaft Diameter (Inches) 15/16
- Spline Count 17
- Pad Quantity 6
- Disc Type Rigid Race Disc
- Pressure Plate Type Heavy Duty
- Flywheel Included 600340
- Flywheel Type Streetlite
- Flywheel Tooth Quantity 139
- Flywheel Mounting Hole Quantity 8
Benefits
- Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
- Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
- Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
- Recommended Use: Recommended for race use only
- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Applications
- 2003-2005 Dodge Neon SRT-4

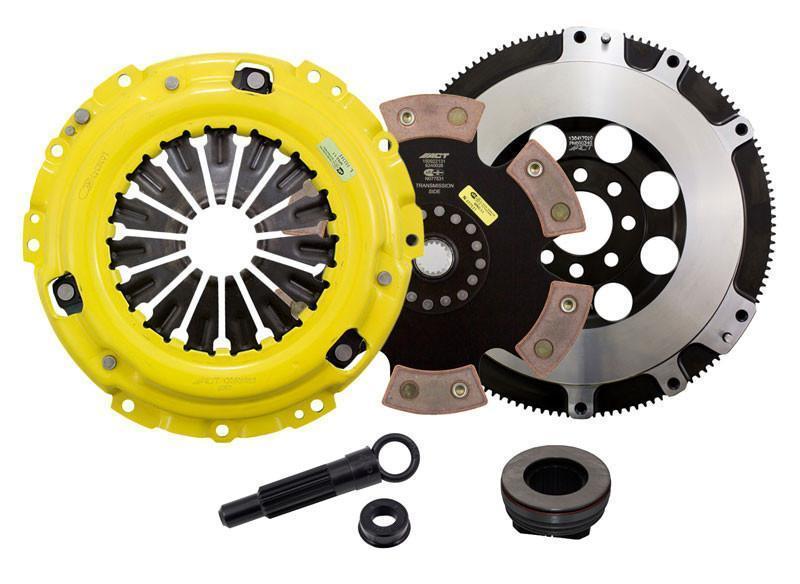

What's In The Box?
- XACT Flywheel Streetlite - 600340
- 6 Pad Rigid Race Disc - 6240026
- P/PL Heavy Duty - D017
- Alignment Tool - ATCP2
- Release Bearing - RBDN1
