ACT HD 6 Puck Sprung Clutch Kit | 2006-2011 Mazdaspeed 3/6

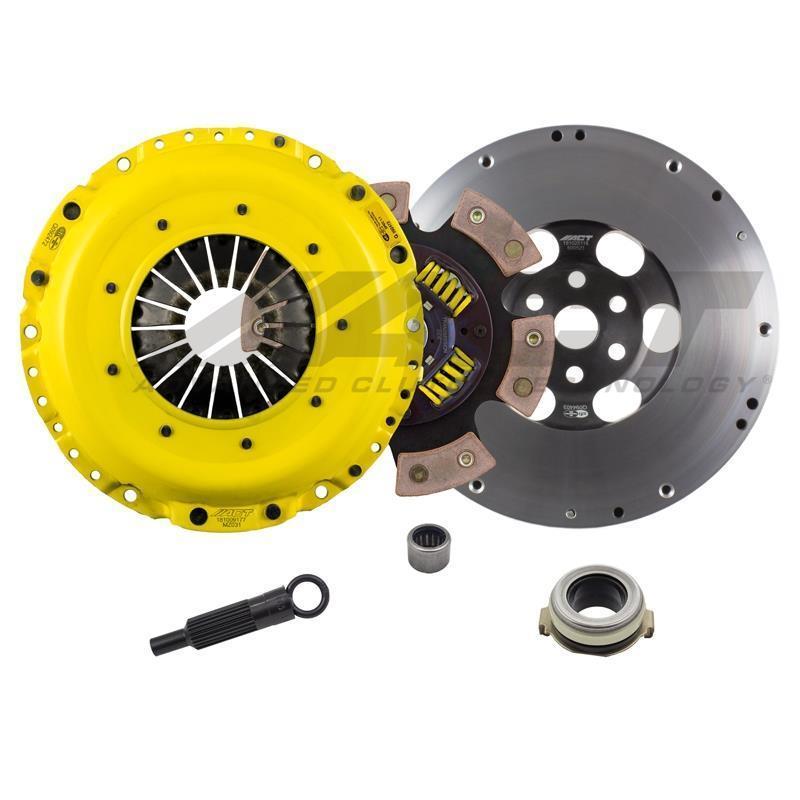

HD/Race Sprung 6 Pad Clutch Kit with Flywheel

The ZX4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Features

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Specifications

• Product Weight (lbs.) 30.5
• Disc Type Sprung Race Disc
• Torque Capacity Over OE 88%
• Torque Capacity (ft/lbs.) 530
• Disc Material Ceramic
• Pad Quantity 6
• Tooth Quantity 112
• Spline Count 23
• Friction Surface Diameter (Inches) 9.4
• Pressure Plate Type Heavy Duty
• Input Shaft Diameter (Inches) 1
• Friction Surface Diameter (mm) 240

Applications

• 2006-2007 Mazdaspeed 6
• 2007-2013 Mazdaspeed 3

What's In The Box?

• 1 - Complete Clutch Kit


Warranty

• Manufacturer Standard Warranty

Resources

• Installation Manual
