ACT XT-O/Race Sprung 4 Pad Kit | Multiple Fitments (T43-XTG4)

ACT XT-O/Race Sprung 4 Pad Kit

T43-XTG4 kit features ACT's powerful Xtreme pressure plate and spring center 4 pad race disc delivering ultra-high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

Features

• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes
• Product Weight (lbs.): 16.8
• Torque Capacity (ft/lbs.): 450
• Torque Capacity Over OE: 1.07
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme

Applications

• 1987-1995 Toyota 4Runner
• 1987-1995 Toyota Pickup

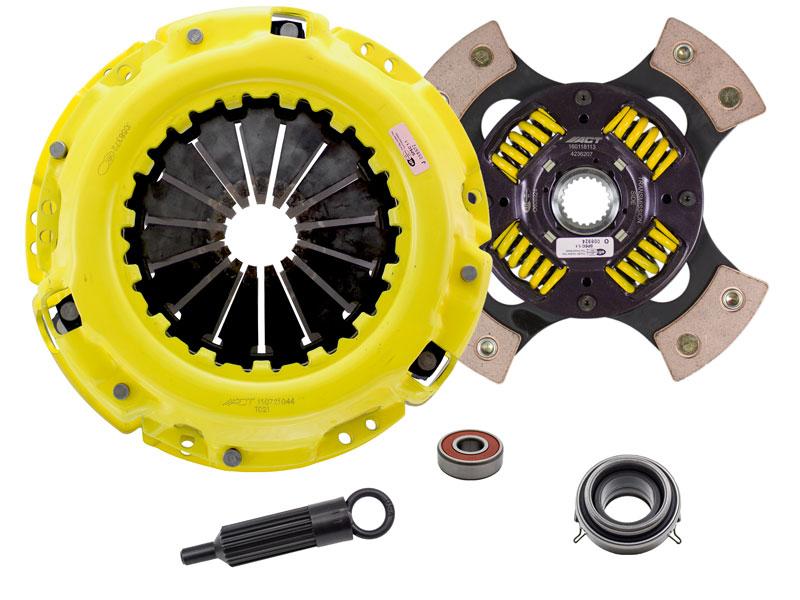

What's In The Box?

• Clutch Friction Disc (4236207)
• Clutch Alignment Tool (AT11)
• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB445)
• Clutch Pressure Plate (T021X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
