ACT XT-O/Race Rigid 6 Pad Kit

T43-XTR6 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 6 pad race disc delivering ultra-high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s rigid center 6 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.

Features

• Product Weight (lbs.): 16
• Torque Capacity (ft/lbs.): 450
• Torque Capacity Over OE: 1.07
• Pilot Bushing Included: Yes
• Pressure Plate Type: Xtreme
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 9.3
• Clutch Disc Diameter (mm): 236
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 1987-1995 Toyota Pickup
• 1987-1995 Toyota 4Runner

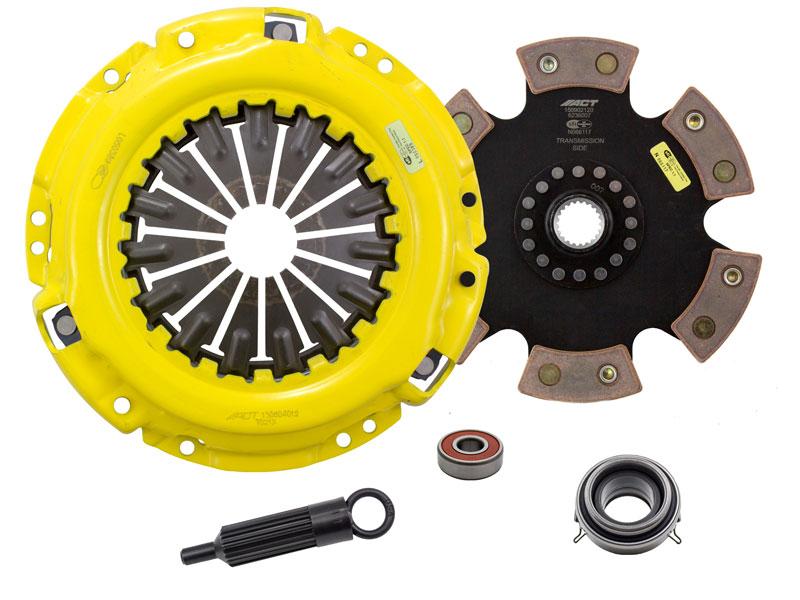

What's In The Box?

• Clutch Friction Disc (6236007)
• Clutch Alignment Tool (AT11)
• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB445)
• Clutch Pressure Plate (T021X)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
