ACT HD-O/Race Sprung 4 Pad Kit | Multiple Fitments (T42-HDG4)

ACT HD-O/Race Sprung 4 Pad Kit

T42-HDG4 kit features ACT's highly regarded Heavy Duty pressure plate and spring-center 4 pad race disc delivering high torque capacity, aggressive engagement, quiet operation and increased toughness to withstand the demands of off-road racing. ACT’s exclusive diaphragm design increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT’s spring center 4 pad race discs boast quality parts throughout, with robust spring center sections to absorb driveline shock and premium ceramic friction materials to hold power even under the most abusive conditions.

Features

• Product Weight (lbs.): 14.8
• Torque Capacity (ft/lbs.): 355
• Torque Capacity Over OE: 0.89
• Pilot Bushing Included: Yes
• Pressure Plate Type: Heavy Duty
• Release Bearing Included: Yes
• Clutch Disc Diameter (in.): 8.8
• Clutch Disc Diameter (mm): 224
• Disc Material: Ceramic
• Input Spline Quantity: 21
• Input Shaft Diameter (in.): 1.125
• Alignment Tool Included: Yes

Applications

• 1989-1993 Toyota 4Runner
• 1989-1995 Toyota Pickup

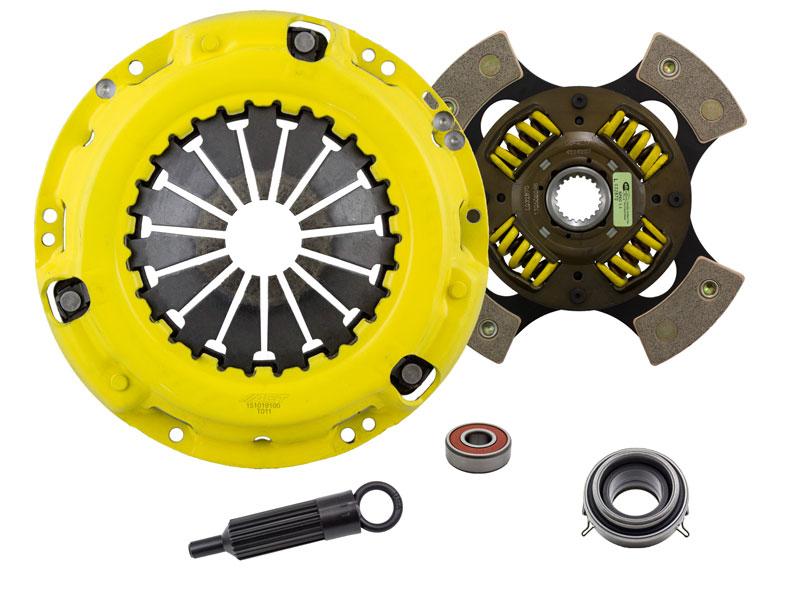

What's In The Box?

• Clutch Pilot Bearing (PB1004)
• Clutch Release Bearing (RB445)
• Clutch Pressure Plate (T011)
• Clutch Friction Disc (4224207)
• Clutch Alignment Tool (AT11)

References

• Installation Instructions

Warranty

• Manufacturer 1 Year Warranty
