Mishimoto Performance Heat Exchanger | 2020-2021 Toyota GR Supra 3.0L (MMHE-SUP-20)
Mishimoto Performance Heat Exchanger | 2020-2021 Toyota GR Supra 3.0L (MMHE-SUP-20)
Couldn't load pickup availability

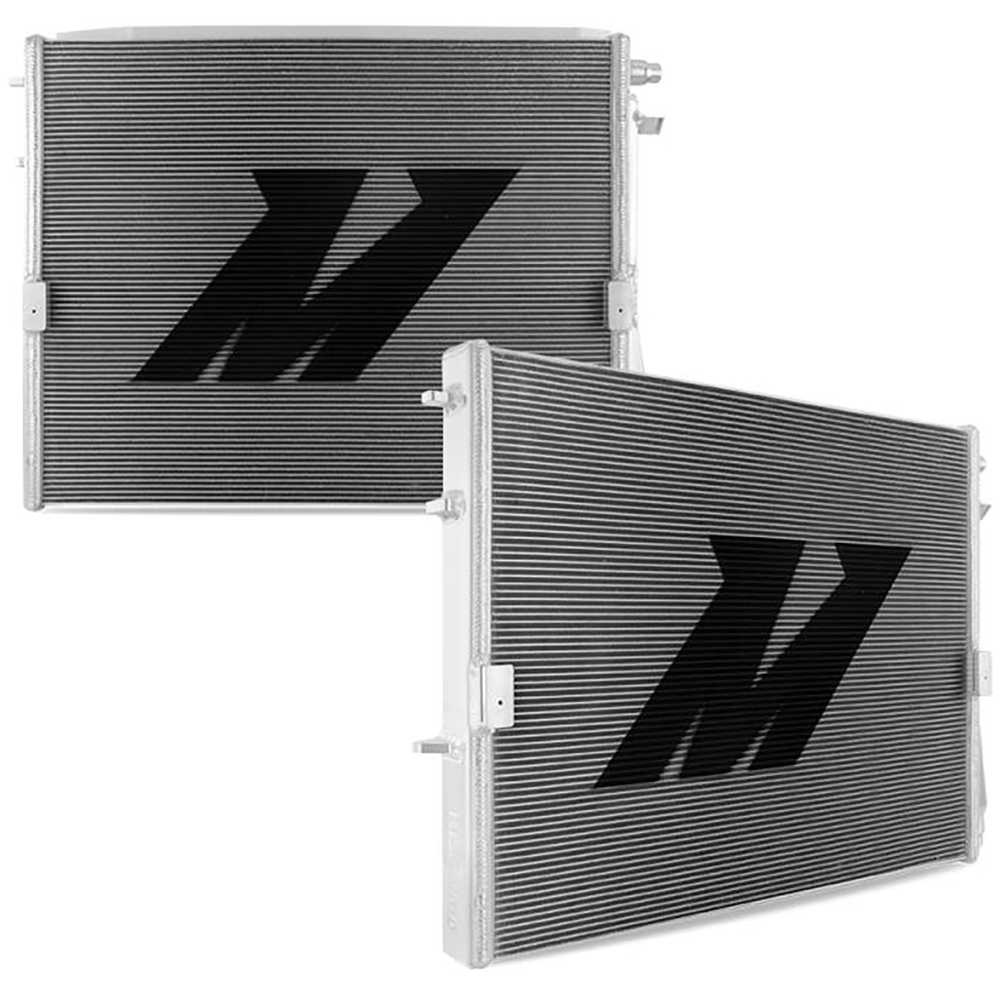

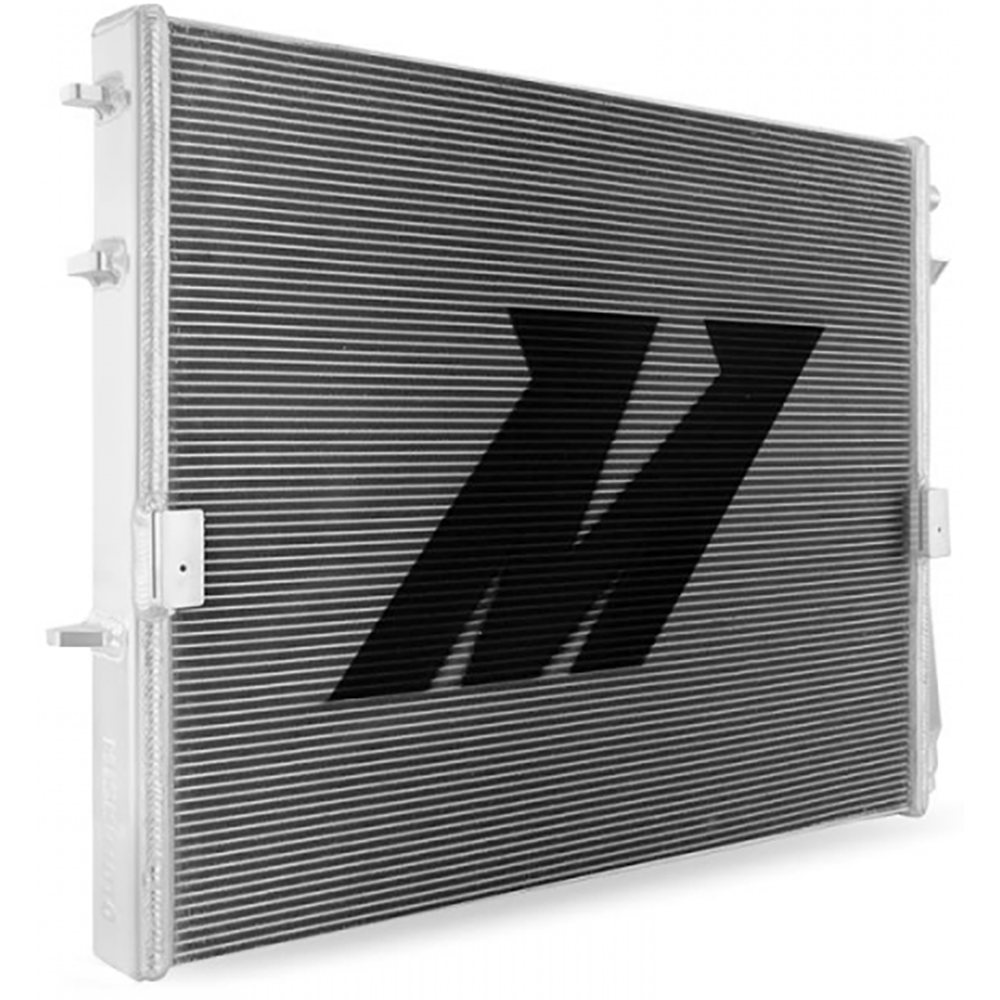

2020-2021 Toyota Supra 3.0T and 2019-2021 BMW Z4 3.0T Performance Heat Exchanger by Mishimoto

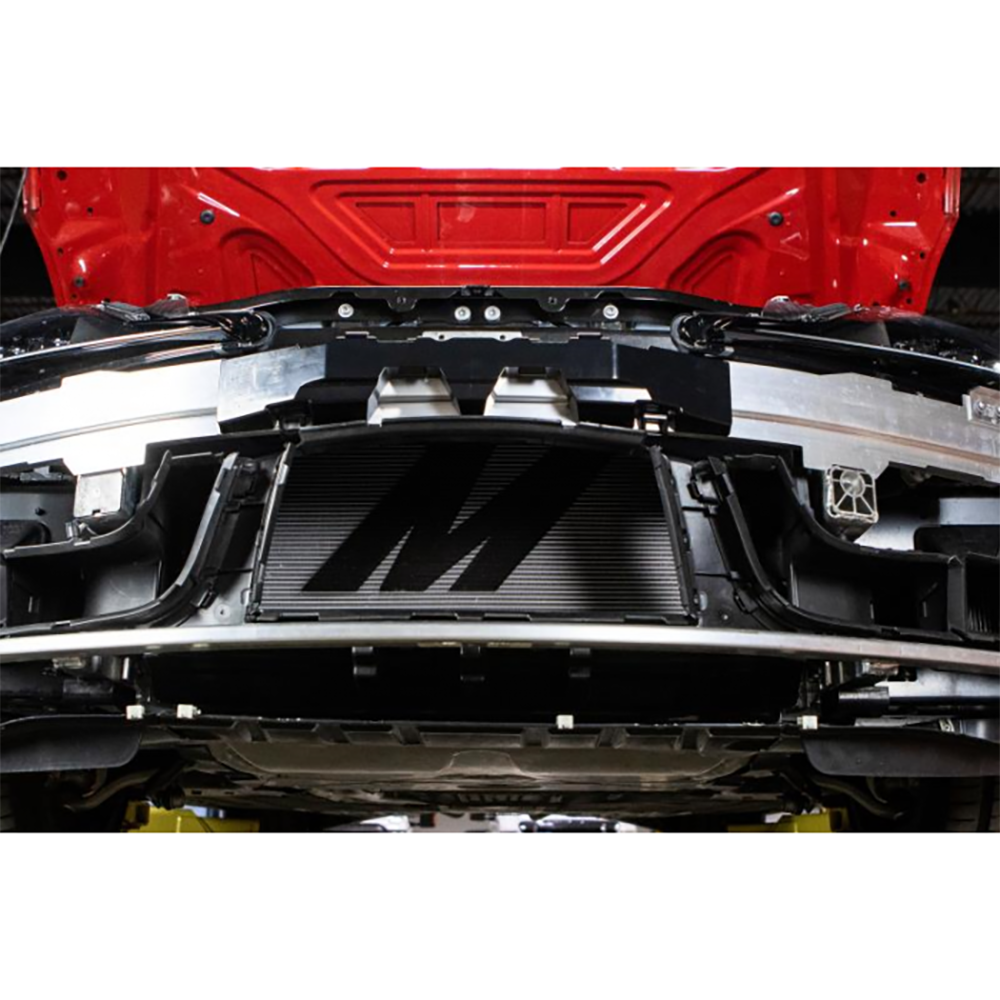

Help keep your intake air temperatures down with the Mishimoto Performance Heat Exchanger explicitly designed for the 2020+ Toyota GR Supra 3.0L and 2019+ BMW Z4 3.0L. The air-to-water intercooler is the future for forced induction vehicles, so it's no surprise when the BMW and Toyota tag-team integrated their system directly into the intake manifold for these new aged sports cars. This might maximize the cooling efficiency of the B58, but there are still some shortcomings, especially when it comes to the A90 and G29's heat exchangers. Luckily, we here at Mishimoto have the solution.

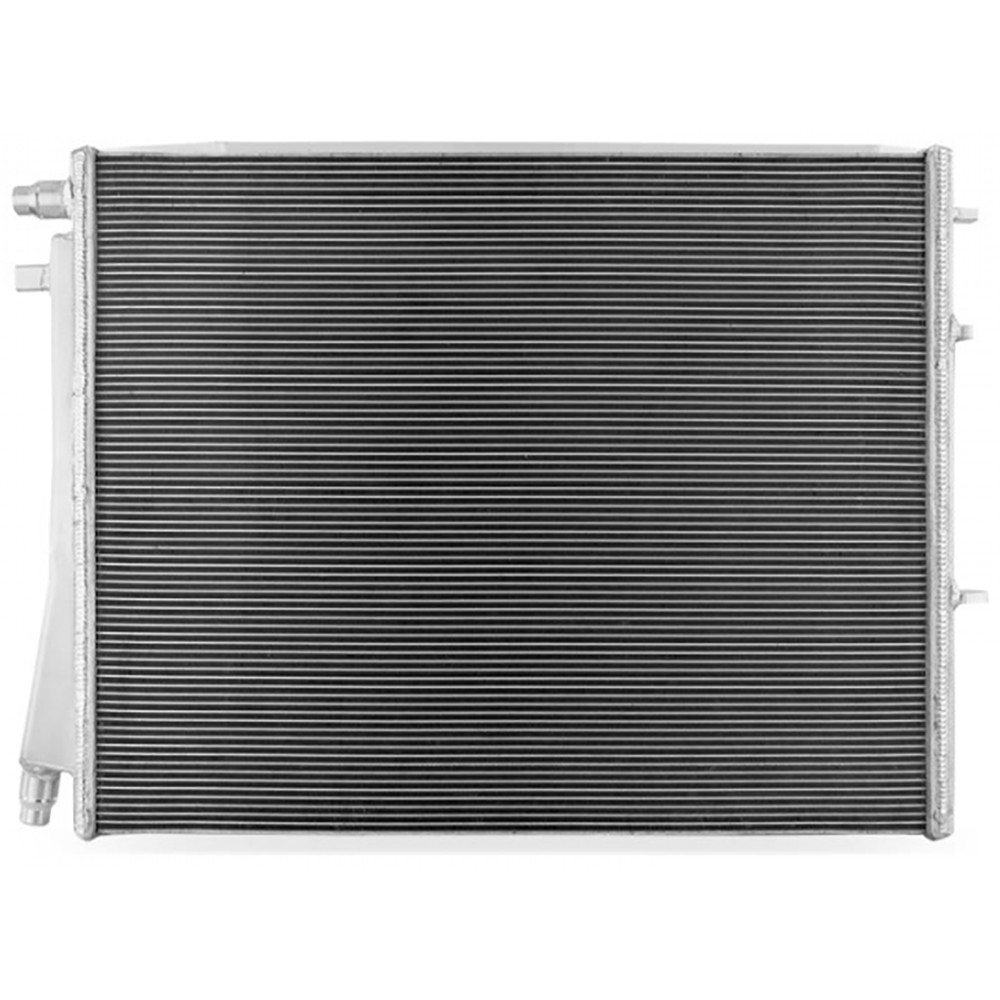

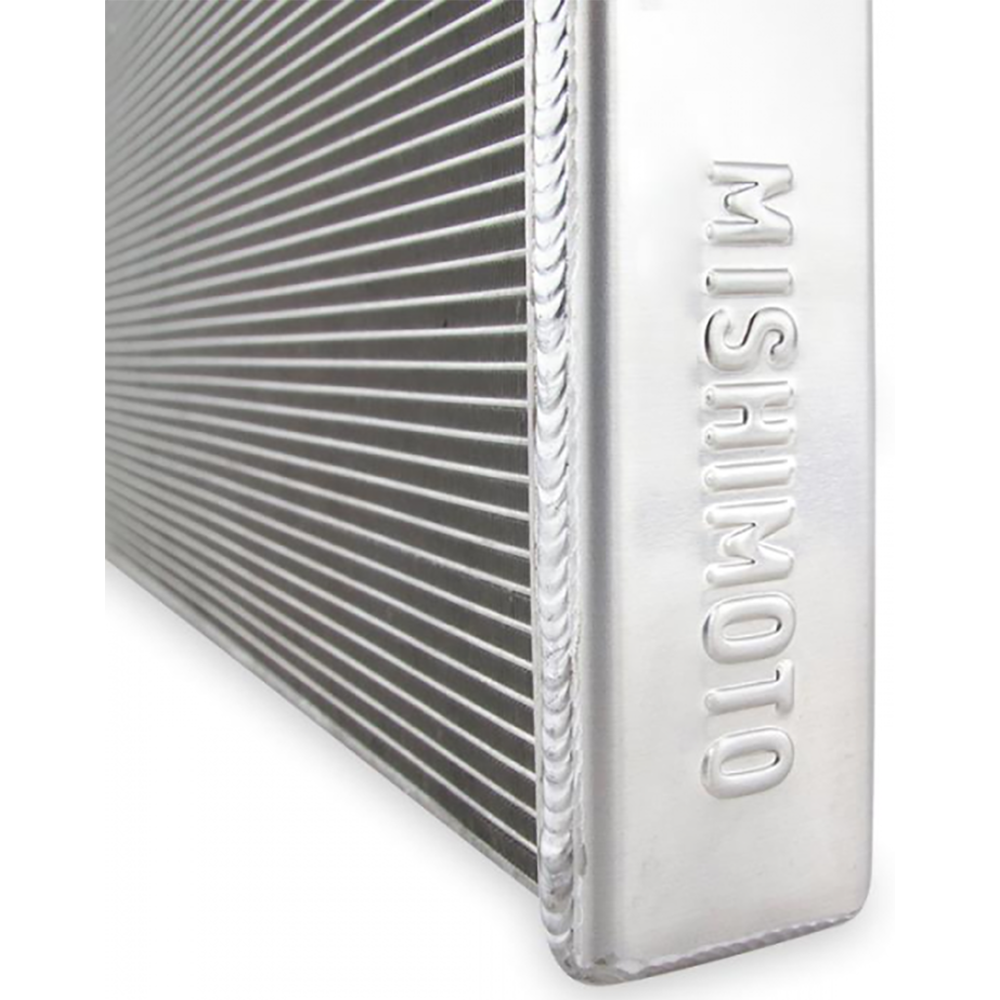

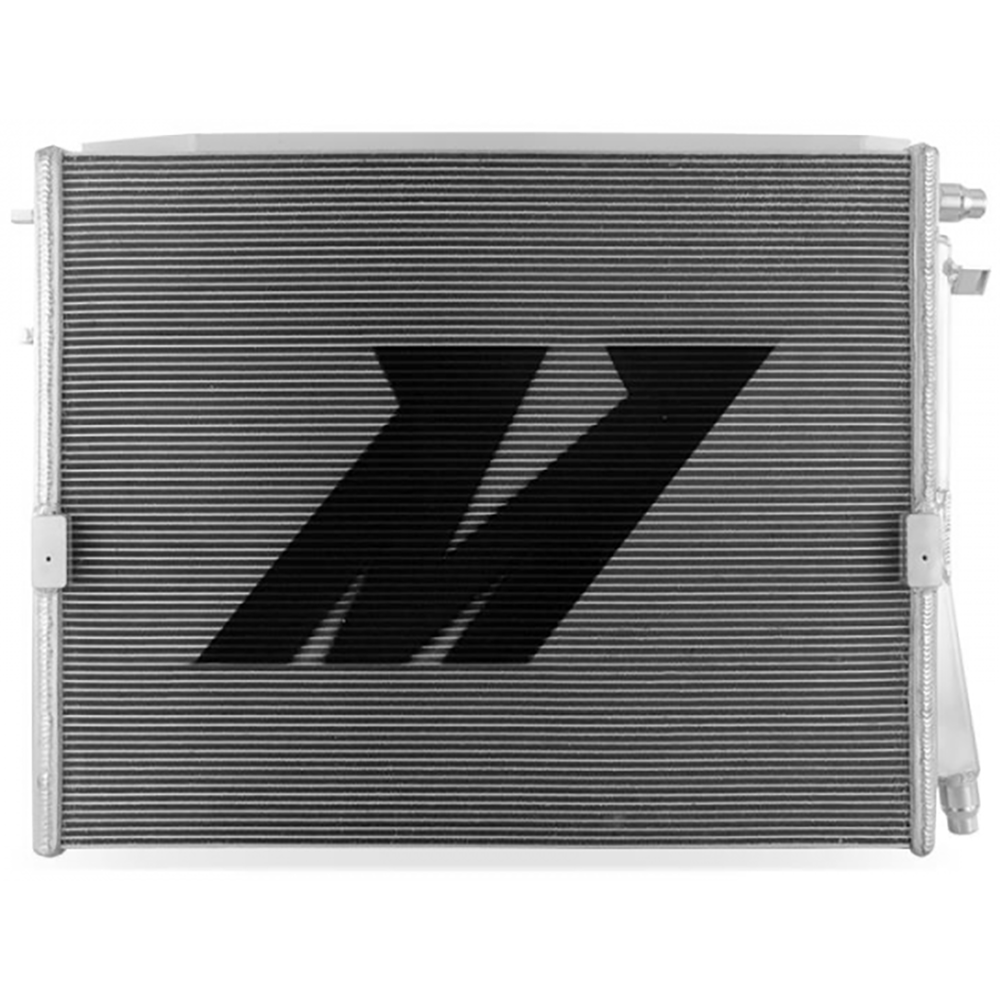

We started from the ground up with our design, starting by ditching all plastic bits, replacing the end tanks, core, and inlet/outlet ports with a durable aluminum TIG-welded for maximum durability. We also opted to utilize strutted tubes within our heat exchanger core to add even more strength, ensuring an added resistance against bowing and flexing under hard cornering.

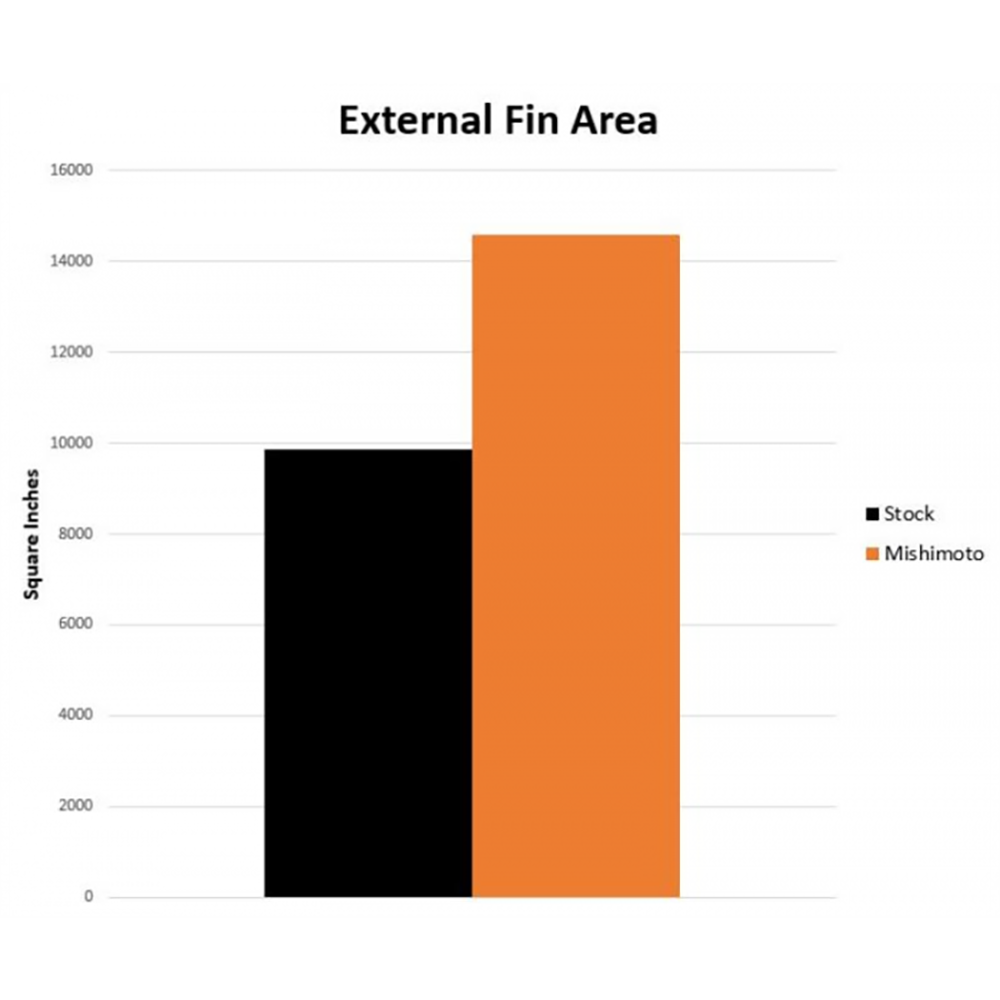

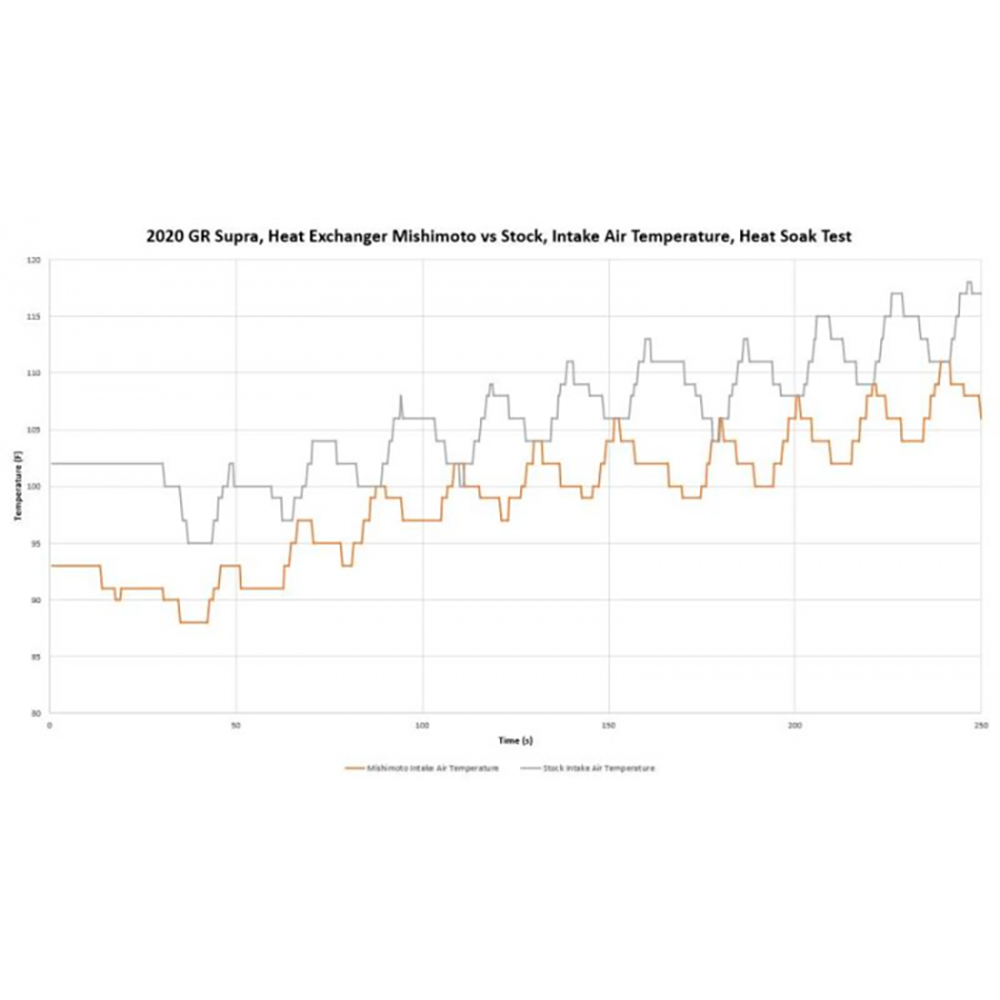

There's more to our design than strength as well. In addition to our durability features, we also expanded our heat exchanger's size, adding 31% in core volume and 48% to the external fin surface area. Combined with our dual-pass flow configuration and louvered fin design, we were able to record a 5-7°F drop in intake air temperatures, along with a more consistent global intercooler coolant temperature.
Features
- Strutted tubes incorporated in core for maximum durability
- Full aluminum, TIG-welded construction
- Dual-pass design for maximum cooling
Benefits
- 5-7°F drop in intake air temperatures over stock

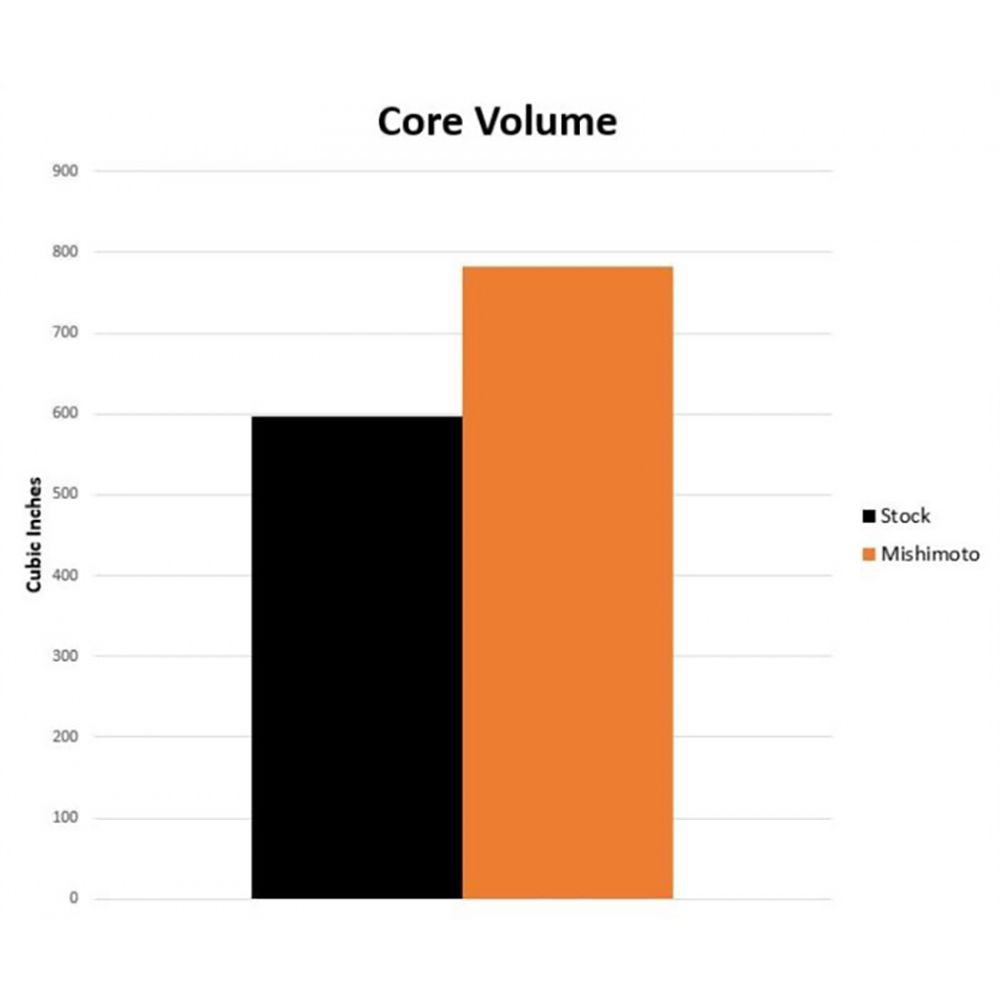

- 31% increase in core volume
- 48% increase in external fin surface area
Applications
- 2020-2021 Toyota Supra 3.0T
- 2019-2021 BMW Z4 3.0T
What's In The Box?
- 1 - Performance Heat Exchanger
References
Warranty

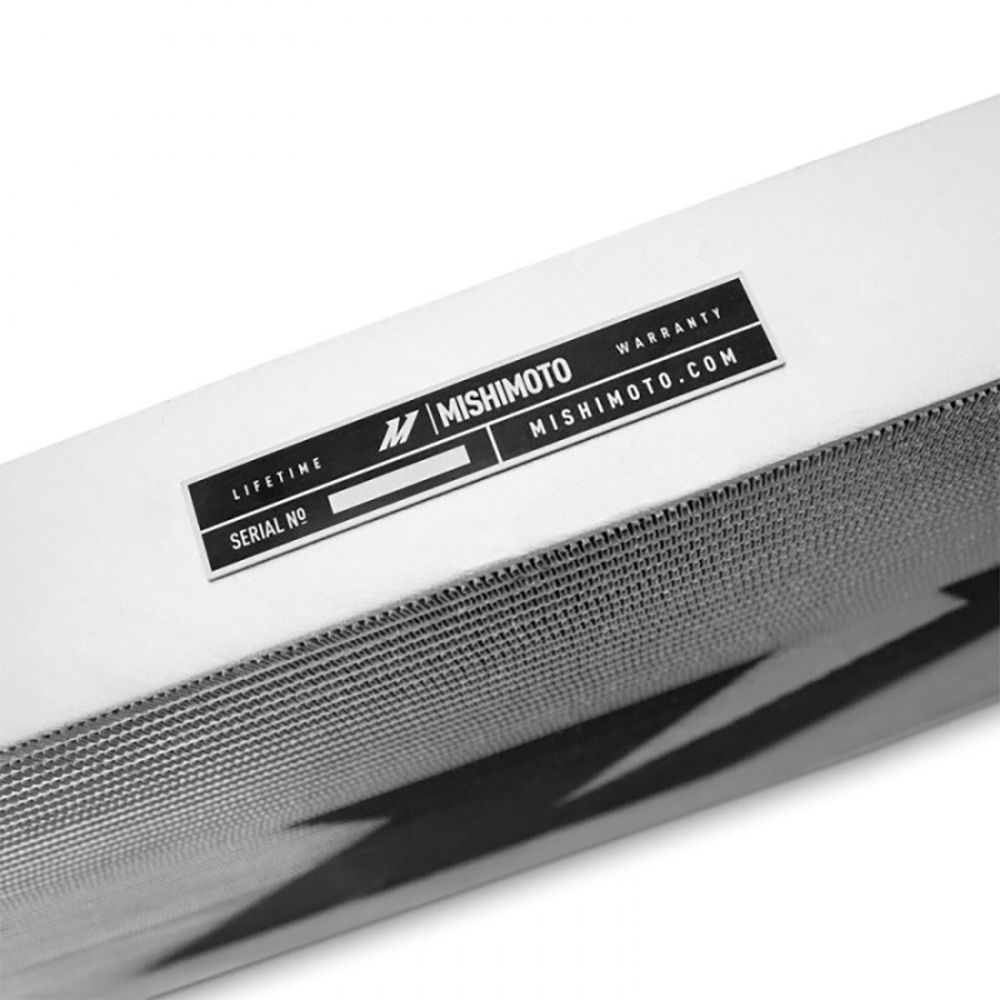

- Mishimoto offers a lifetime warranty on this product.
