ZR Series Coilover Subaru Impreza WRX STI 2005-2007 - F-03-ZR

• About the Brand
• About Product
• Vehicle Fitments

BC-Racing was founded back in 1999 in Nantou, Taiwan, with the first BC-Racing coilover to debut in Taiwan in 2003, which was then made available worldwide in 2004. BC Racing Coilovers are highly customizable to allow all end-users to purchase the perfect setup for their specific needs. BC Racing understands that each driver and each vehicle have different needs. To allow customers to see their projects come to fruition, exactly how they evensong them, BC Racing offers complete customization of all coilover systems. Each coilover can be ordered with custom spring rates, damper lengths, valving, braided line lengths for double and triple adjustable coilers, camber / caster plates, and proprietary 62 ID Swift Springs.

Chassis Code: GDE/GDF | ZR Series Coilover Subaru Impreza WRX STI 2005-2007 - F-03-ZR

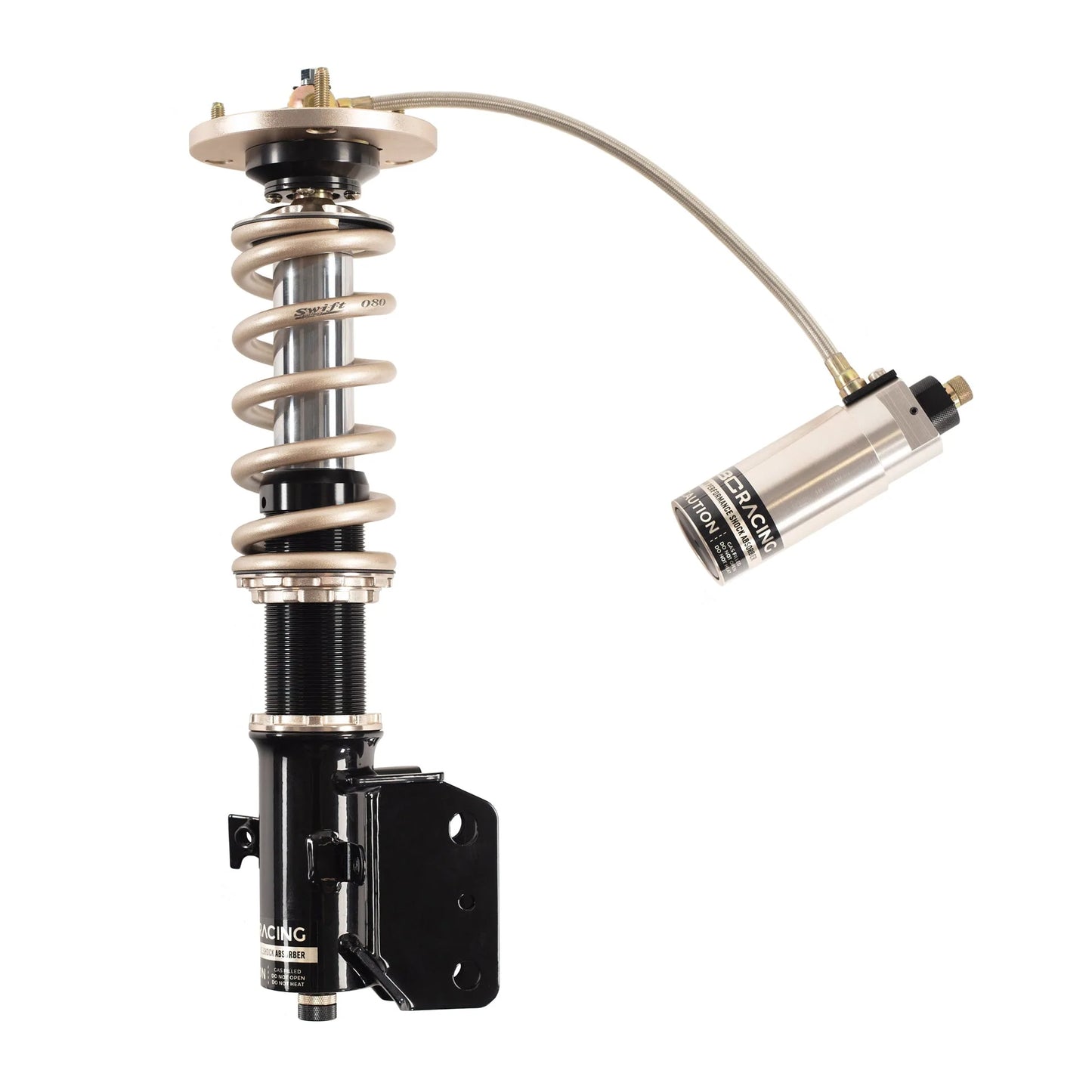

BC Racing's new ZR Series Coilovers are bringing a 3-way adjustable track ready coilover system to racers from novice to pro for an affordable price thates never been seen in the industry. Each ZR Series Coilover system offers independent low speed/high speed compression adjustments and separate rebound adjustment. They also offer full height adjustability independent of piston travel and spring preload. On cars with McPherson struts the ZR Series comes standard with an inverted mono-tube damper with the steel braided Teflon coated line exiting the top of the damper to the external reservoirs that can be remotely mounted on the chassis for easy adjustment. Cars with double A-arm suspension come with upright dampers with steel braided Teflon coated lines or solid stem that exit the damper at the bottom and lead to the external reservoir that can be mounted under the chassis or on the shock body itself. ***Extreme drop separate

• Inverted Mono-Tube Damper
• Linear Twin Piston Design
• Swift Springs Come Standard On ZR Series Coilover
• Height Adjustment Independent Of Spring Compression
• 30-Clicks Of Rebound Adjustment
• 15-Clicks Of Low Speed Compression Adjustment
• 12-Clicks Of High Speed Compression Adjustment
• Front And Rear Camber Plates Standard On All Applicable Kits
• Front And Rear Pillowball Mounts Standard When Camber Plates Do Not Apply
• Custom Spring Rates Available
• Custom Valving Or Valving Paired For Custom Spring Rates
• 1-Year Warranty Against Manufacturers Defect
• Fully Rebuildable
• Contact Customer Support for custom spring rates, swift spring upgrades, as well as other optional customizations that may be available for this product.
• FREE Ground Shipping on All BC Coilovers! Automatically applied at checkout. (Domestic US Only)
• All prices, specs, fitment, and drop are subject to change without notice
• All kits are 2WD unless specified AWD
• Some RM Series & Most ER Series systems use different spring rates than BR Series. Please inquire if necessary.
• Notes regarding electronic damping (EDC, DDS, etc.) pertain to physical fitment only. BC Racing kits DO NOT interface w/ OEM electronic damping control systems.
